TX3000 Intelligent pH/ORP Transmitter/Controller
From Sensorex

Sensorex - TX3000 Intelligent pH/ORP Transmitter/Controller

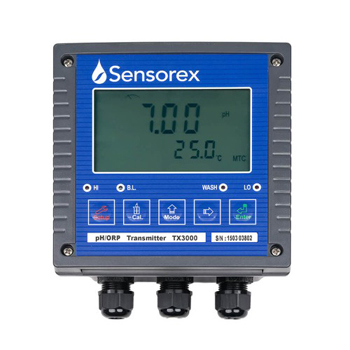

Our TX3000 is an intelligent transmitter/controller for reading pH and ORP sensors and programmable process control. The large LCD display shows pH/ORP value simultaneously with temperature. Compatible with all Sensorex combination-style pH and ORP sensors. Versatile mounting options for panel or wall mounting.

• Reliable pH/ORP monitoring and process control

• Simple sensor calibration

• High-accuracy measurements

• Compatible with all Sensorex combination-style pH/ORP sensors

• One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads.

Specifications

• Measurement Range (pH): -2.00 to 16.00pH, 0.01 pH resolution

• Measurement Range (ORP/mV): -1999mV to 1999mV, 1mV resolution, +/- 1mV accuracy

• Temperature Range: -30 °C to 130 °C , 0.1 °C resolution, 0.2 °C accuracy

• Calibration Mode: Any Tech & NIST or custom buffers up to 2 points

• Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 144 mm (3.78?) x 144 mm (3.78?) x 115mm (5.20?), 1/2 DIN

• Panel Cut-Out: 138mm (3.66?) x 138mm (3.66?)

• Display: Large LCD, auto-sense backlight

• Analog Output 1: 0/4 -20mA, corresponding to pH or ORP output. Max load 500 O.

• Analog Output 2: 0/4 -20mA, corresponding to temperature output. Max load 500 O

• Voltage Output: DC +/- 12V, 1W max

• Alarm/Control Relays: Contact: 240V AC, 5A max Activate: 2 setpoints Hi/Low, On/Off

• Wash Setting: Contact: 240V AC, 30V DC 5.0A max On: 0-9999 seconds /Off: 0-9999 hoursMounting Options: Panel o

• r wall mounting

• Ambient Operating Temperature: 0° C to 50° C

• Ambient Humidity: 0 to 95%, non-condensing

• emperature Compensation: NTC 30K or Pt1000 RTD with automatic compensation or manual

• Power Requirement: 100-240V AC +/- 10%, 9W max., 50/60 Hz

• Warranty: One year limited warranty

• Weight: Approx. 1.75lb (0.80kg)

• Certifications: CE


Specification Sheet for TX3000 Transmitter / Controller

Instruction Sheet for TX3000 Intelligent pH/ORP Transmitter/Controller
