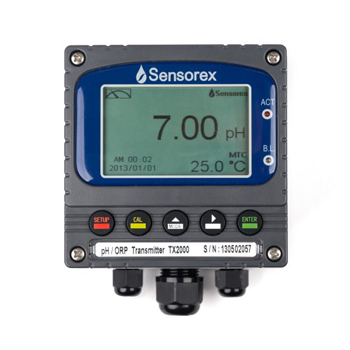

TX2000 Intelligent pH & ORP Transmitter/Controller
From Sensorex

Sensorex - TX2000 Intelligent pH & ORP Transmitter/Controller

Our TX2000 is an intelligent transmitter/controller for reading pH and ORP sensors and programmable process control. The large LCD display shows pH/ORP value simultaneously with temperature. Compatible with all Sensorex combination-style pH and ORP sensors. Versatile mounting options for panel or wall mounting.

  • Reliable pH/ORP monitoring and process control

  • Simple sensor calibration

  • High-accuracy measurements

  • Compatible with all Sensorex combination-style pH/ORP sensors

  • One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads.

Specifications

  • Measurement Range (pH): -2.00 to 16.00pH, 0.01 pH resolution

  • Measurement Range (ORP/mV): -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy

  • Temperature Range: -20 °C to 110 °C , 0.1 °C resolution, 0.2 °C accuracy

  • Calibration Mode: Any Tech & NIST or custom buffers up to 5 points

  • Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.78?) x 96 mm (3.78?) x 132mm (5.20?), 1/4 DIN

  • Panel Cut-Out: 93mm (3.66?) x 93mm (3.66?)

  • Display: Large LCD, auto-sense backlight, text, chart or trace mode

  • Analog Output 1: 0/4 -20mA, corresponding to pH or ORP output. Max load 500 O.

  • Analog Output 2: 0/4 -20mA, corresponding to temperature output. Max load 500 O

  • Voltage Output: DC +/- 12V, 1W max

  • Alarm/Control Relays: Contact: 240V AC, 5A max Activate: 2 setpoints Hi/Low, On/Off

  • Wash Setting: Contact: 240V AC, 30V DC 5.0A max On: 0-9999 seconds /Off: 0-9999 hours

  • Mounting Options: Panel or wall mounting

  • Ambient Operating Temperature: 0° C to 50° C

  • Ambient Humidity: 0 to 95%, non-condensing

  • Temperature Compensation: NTC 30K or Pt1000 RTD with automatic compensation or manual

  • Power Requirement: 100-240V AC +/- 10%, 9W max., 50/60 Hz

  • Warranty: One year limited warranty

  • Weight: Approx. 1.10lb (0.50kg)

  • Certifications: CE

Specification Sheet for TX2000 Transmitter / Controller



More pH and ORP Transmitters/Controllers

TX10 | TX20 | TX100 | TX2000 | TX3000
