TX100 pH/ORP Loop Powered 4-20mA Transmitter
From Sensorex

Sensorex - TX100 pH/ORP Loop Powered 4-20mA Transmitter

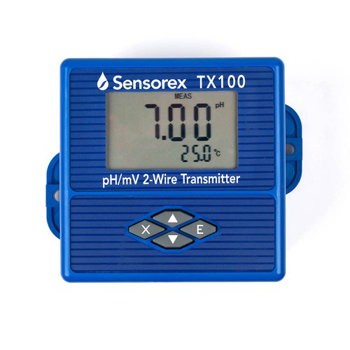

Our TX100 is a fully-featured pH/ORP transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for wall, panel, DIN rail or pipe mount.

• Reliable pH/ORP monitoring

• Simple sensor calibration

• Automatic sensor maintenance alerts

• Compatible with a wide variety of Sensorex pH/ORP sensors

• One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads.

Specifications

• Measurement Range (pH): 0.00 to 14.00pH, 0.01 pH resolution, +/- 0.01 accuracy

• Measurement Range (ORP/mV): -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy

• Temperature Range: -20 °C to 110 °C , 0.1 °C resolution, 0.2 °C accuracy

• Current Output Range: 2.00mA to 24mA, 0.01mA resolution, +/-0.005mA accuracy, 500V input/output isolationEnclosure:

• NEMA 4X IP65, ABS case with push-button control pad; HWD: 3.9” (99.1 mm) x 3.9” (99.1 mm) x 2.9” (74.7mm)

• Mounting Options: Panel, wall, DIN rail, or pipe mounting

• Ambient Operating Temperature: 0° C to 60° C

• Storage Temperature: 10° C to 70° C

• Ambient Humidity: 0 to 95%, non-condensing

• Location: Designed for non-hazardous environments

• Maximum Sensor to Transmitter Distance: 30 feet (9.1 meters)

• Conduit Openings: 2 each 3/8? NPT openings (cord grips included)

• Temperature Input: 2-wire Pt1000 RTD with automatic compensation

• Power Requirement: 12-24 VDC, max 600Ohm load

• Warranty: One year limited warranty

• Weight: Approx. 1lb (0.45kg)


Specification Sheet for TX100 pH/ORP Transmitter

Instruction Sheet for TX100 pH/ORP Loop Powered 4-20mA Transmitter
