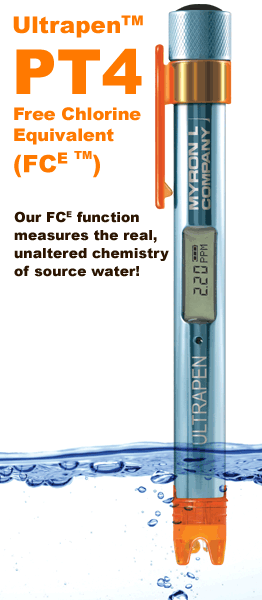

ULTRAPEN PT4, Free Chlorine Equivalent (FCE) & Temperature Pen ULTRAPEN™ PT4 is Myron L Company�s ground breaking, new Pocket Tester for measuring Free Chlorine Disinfecting Power, Free Chlorine Equivalent (FCE™), as well as Temperature. It is waterproof and designed to be extremely accurate, fast, and simple to use in diverse water quality applications.

High Performance Features

Accuracy of up to �0.3 ppm FC^E

Proprietary Sensor Design

Calibration with pH and ORP Standard Solutions

Automatic Temperature Compensation

Temperature Readout

Waterproof

Powerd by one N Type Battery (included)

Applications

Agriculture

Hydroponics

Aquaculture

Pharmaceutical

Boilers and Cooling Towers

Horticulture

Wastewater

Food and Beverage

Irrigation

Reverse Osmosis

Plus Many More!

NEW! FC^E Free Available Chlorine (FAC) Function

The Myron L Company FC^E function reports FAC quickly and accurately by measuring ORP, the chemical characteristic of chlorine that directly reflects its effectivity, cross referenced with pH. Both DPD kits and colorimeters may tell the user the FAC value of the sample in the test tube, but since the chemistry of that sample is quite different from the source water being analyzed, the results are imprecisely related to actual disinfection power. The Myron L Company FC^E function measures the real, unaltered chemistry of source water, including moment-to-moment changes in that chemistry.

Specifications

FC^E

Temperature

Range:	0 - 10.0 ppm	0 - 71°C / 32 - 160°F
Accuracy:	< 5.00 ppm � 0.3 ppm ≥ 5.00 ppm � 0.5 ppm	± 0.1ºC / ± 0.1ºF
Resolution:	0.01 ppm	0.1ºC / 0.1ºF
Time to Reading Stabilization: 10 - 45 seconds
Power Consumption: Active Mode 37 mA, Sleep Mode 2 µA
Temperature Compensation: Automatic In Calibration Mode From 15ºC to 30ºC
Physical Dimensions: 17.15 cm L x 1.59 cm D / 6.75 in. L x .625 in. D
Weight: 50.4 g / 1.78 oz. (without soaker cap and lanyard)
Case Material: Anodized Aircraft Aluminum with Protective Coating
Battery Type: N type, Alkaline, 1.5 V
Calibration Standard Solutions: pH4, pH7, pH10, ORP80, ORP260, ORP470
Operating/Storage Temperature: 0 - 55ºC / 32 - 131ºF
Enclosure Ratings: IP67 and NEMA6
EN61236-1: 2006 – Annex A: 2008: Electrostatic discharge to the PT4 may cause it to spontaneously turn on. If this occurs, the PT4 will turn off.

Downloads

ULTRAPEN PT4 Free Chlorine Equivalent (FCE) & Temperature Pen
