The Chlorine Dioxide Pocket Photometer gives you the accuracy expected from your laboratory, no matter where you happen to be. The Chlorine Dioxide Pocket Photometer is packaged in a self contained, rugged carrying case, and has everything needed for measuring residual Chlorine Dioxide.

Features

Laboratory accuracy in the field
Microprocessor technology together with rugged construction ensures accuracy and durability in the roughest environments
Integrated packaging
Self contained packaging provides convenient access to everything needed to conduct a test
Auto shut off
Pocket photometer extends battery life by automatically shutting off when not in use
EPA approved method-chlorine dioxide photometer
Meets Standard Method 4500-ClO2D.DPD Colorimetric Method for measuring residual Chlorine Dioxide
DPD dispenser
Uses the HF DPD Powder Pop dispenser that simplifies the handling of DPD reagent
Made in the USA

Specifications

Range	0 - 10 mg/l
Method	EPA approved - DPD
Resolution	0.01 ppm for 0-6 ppm
	0.1 ppm for 6-10 ppm
Measurement	1cm pathlength
Accuracy	2% 0-6 ppm
	10% 6-10 ppm
Response time	3 seconds
Power supply	4 - AAA alkaline batteries (up to 1000 tests)
Display	7 segment brightvision LCD
Certification	CE
Light source	Longlife LED - 515nm
Sample size	3 ml
Enclosure	IP67, waterproof at 1m for 30 minutes

Literature & Specifications

Operators Manual

Chlorine Pocket Photometer Instruments and Accessories

Instruments

Model	Description

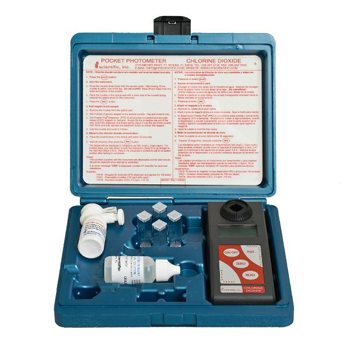

10474	Chlorine Dioxide Pocket Photometer includes rugged carrying case, 4 measuring cuvettes with caps, DPD Powder Pop dispenser with 100 doses of DPD reagent, 30ml of Clycine reagent, 4-AAA alkaline batteries and instructions.

Accessories

Model	Description
10419	Reagent kit - DPD dispenser and 30ml of glycine (dropper) for 100 doses (5 ml sample volume)
10431	Cuvettes, disposable with caps, pkg. 100
10453	Reference standard solution, 2.0ppm 118ml
22664	Batteries, AAA - 4 pack
24571s	Rechargable battery pack with 120v charger
