 With over 30 years of optical design technology expertise HF scientific has developed it’s 4th generation Wastewater UV %Transmission Analyzer specifically for the harsh environment of wastewater applications. The AccUView Wastewater is manufactured using advanced technology, a NEMA 4X Stainless Steel Enclosure and revolutionary ultrasonic technology making it the most reliable, maintenance free and cost efficient UV %T Analyzer for Wastewater. The Auto Clean Ultrasonic Cleaning System continuously cleans the optical chamber providing a maintenance free reliable measurement.
Features
-
Optical design
New optical design allows consistent readings with laboratory %T Analyzers
-
Bellows Pump
Pump included to provide reliable sample flow to the instrument
-
Certified traceable standards
HF scientific certifies the 100%T calibration standard is prepared as outlined in Standard Methods for the Examination of Water and Wastewater, 21st Edition. Method 1080 A-C, Methods for Preparation of Reagent Water
-
Backlight display
User adjustable backlight display allows viewing in low light conditions. Stainless steel enclosure includes large viewing window to allow monitoring of readings without opening the enclosure
-
Certification
Listed or Certified to CE, UL, CSA(ETL, ETLc)
-
Made in the USA
Specifications
| Range |
0 - 100% Transmission (auto ranging) |
| Resolution |
0.1%T |
| Repeatability |
± 0.1%T |
| Accuracy |
± 0.1%T |
| Wavelength |
Ultraviolet 253.7nm |
| Response time |
Updated at selectable sample intervals from 10 to 60 minutes |
| Cleaning system |
Ultrasonic |
| Outputs |
4-20 mA with isolator or optional RS-485 with Modbus protocol |
| Alarm |
User settable 240 VAC form C relay |
| Operating temperature |
-20°C to 50°C (-4° to 122°F) low temperature operation requires optional cold weather kit |
| Sample temperature |
0°C to 40°C (32°F to 104°F) |
| Storage temperature |
-20°C to 60°C (-4°F to 140°F) |
| Sample lift |
3.5m (12ft) |
| Sample strainers |
Foot strainer and T-strainer |
| Pump type |
Bellows |
| Flow rate |
Approximately 500ml/minute |
| Display |
Multiline custom LCD with backlight |
| Power requirements |
100 to 240 VAC 47-63 Hz |
| Enclosure |
Stainless steel with lexan window |
| NEMA ratings |
Designed to meet NEMA 4X |
| Agency testing |
CE, CE safety self declare, ETLus & ETLc |
| Dimensions |
20"W x 20"H x 13"D (50.8cm x 50.8cm x 33.2cm) |
| Shipping weight |
22.6 kg (50lbs) |

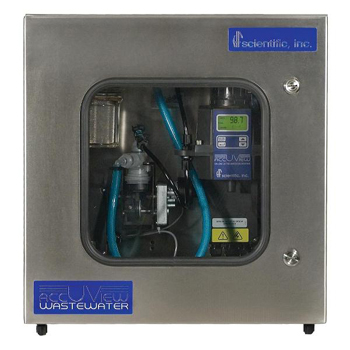

AccUView Wastewater Online UV% Transmission Analyzer
AccUView Wastewater UV %Transmission Monitor Operator's Manual
Chlorine Pocket Photometer Instruments and Accessories
Instruments
| Model |
Description |
| 19571 |
AccUView Wastewater Online UV%T Analyzer, 100-240 VAC, each unit includes stainless steel (304) enclosure with window for viewing of analyzer, spare cuvette, spare flow through assembly, 4-20mA with isolator, backlight display, bellows pump, power supply, desiccant, 500ml of 100%T water and 50 feet of source drain tubing. |
| 19571C |
AccUView Wastewater Online UV%T Analyzer with heater, 100-240 VAC, each unit includes stainless steel (304) enclosure with window for viewing of analyzer, spare cuvette, spare flow through assembly, heater, 4-20mA with isolator, backlight display, bellows pump, power supply, desiccant, 500ml of 100%T water and 50 feet of source drain tubing. |
Accessories
| Model |
Description |
| 19323 |
100%T standard 500ml |
| 19402 |
Cleaning / descaling solution (4 x 1 gallon) |
| 19851A |
RS-485 output with Modbus Protocol (factory installed option) |
| 21201 |
Source/Drain Tubing - sold per foot |
| 21201S |
Source/Drain Tubing - 50 foot roll |
| 21555R |
Replacement Desiccant Pouch |
| 24232S |
Cuvette (Quartz) with Ultrasonic Transducer |
| 24653S |
Bellows pump |
| 24701S |
T-strainer AccUView Wastewater |
| 24745S |
Flow through assembly for AccUView Wastewater (rotational quick release flow head without cuvette) |
| 24767s |
Electronic service module for AccUView Wastewater |
| 70908 |
100%T standard - 1 gallon |
|
