seepex Pumps

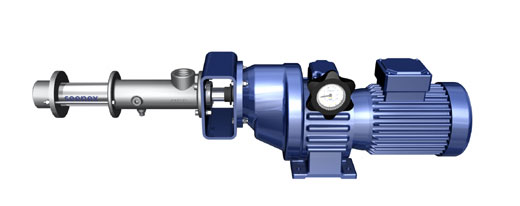

seepex D Dosing Pumps
|
MDP = Apart from a stainless steel housing, pumps of the MD range are also available with housing parts made of plastic. In combination with components made of Hastelloy C (2.4610) or Titan (3.7035) that come into contact with fluids, these pumps are especially well suited for pumping and dosing chemically aggressive media. MDT = The pumps of the MDT range feature a feed hopper with a cylindrical compression zone. Conveying media with a low degree of intrinsic flowability or with none at all are fed to the conveying elements rotor and stator through the auger feed screw on the coupling rod. Optimum filling of the conveying chamber is achieved through the priming pressure generated in the compression zone. MDC = The pumps of the MDC range are equipped with open hygienic fork joints that can be cleaned almost without leaving residues through CIP continuous cleaning. They meet highest demands on hygienic cleanliness and on corrosion and wear resistance. This is achieved through the special shape of the rotor/plug-in shaft coupling rod head. Since the open joint is made up of only a few components, service work can be performed easily and rapidly without the need for special tools. They are certified acc. to the 3-A Sanitary Standard of the US and designed in compliance with the EHEDG directives. MDTC = The MDTC range features a feed hopper with a cylindrical/conical compression zone. Conveying media with a low degree of intrinsic flowability or with none at all are fed to the conveying elements rotor and stator through the auger feed screw on the coupling rod. Optimum filling of the conveying chamber is achieved through the priming pressure generated in the compression zone. The pumps of the MDTCrange are equipped with open joints of the MDC range. They are certified acc. to the 3-A Sanitary Standard of the US and designed in compliance with the EHEDG directives. MDF = Pumps of the MDF range are used as barrel pumps for draining barrels open or closed on top with 2" faucet holes. The supply pressure on the suction side also facilitates trouble-free draining of barrels with low-viscous to highly viscous media. The pump is easy to transport through a handle attached to the lantern. Flows up to 1000 l/hour |
seepex pumps of product group D are used for delivering and dosing small quantities in almost all branches of industry. They are especially suited for low-pulsation delivery of low to highly-viscous media as well as media containing solids and chemically aggressive media while achieving a high dosing accuracy.
