 The new REGAL Chlorine or Sulfur Dioxide Gas Detectors are designed for use wherever chlorine or sulfur dioxide is stored, distributed, or where
potential leakage would pose a risk for personnel and property.
- Properly installed, calibrated, and maintained, the REGAL Gas Leak
Detector senses the presence of free chlorine or sulfur dioxide in the
environment - at levels below those mandated by OSHA - throughout the
working life of the sensor. - 3-digit display and 12 LED bar graph shows
the chlorine or sulfur dioxide gas concentration. - Audible and relay 'warning' alarm at I PPM for chlorine and at 2 PPM for sulfur dioxide and 'danger 'alarm at 3 PPM for chlorine and at 5 PPM for sulfur dioxide. - Displays and transmits sensor or signal failures via an LED and a designated relay. - Maintenance free sensor. - Capable of transmitting digital information for computerized data logging. - Bar graph LED representing the highest (10 PPM maximum for CL2 and 20 PPM maximum for S02) detected level stays lit until manually reset even as the gas concentration decreases. - No need to flush, purge or recalibrate the sensor after an exposure to chlorine or sulfur dioxide gas. - Single, isolated and unpowered 4 - 20 ma analog circuit board is standard on single-sensor units.

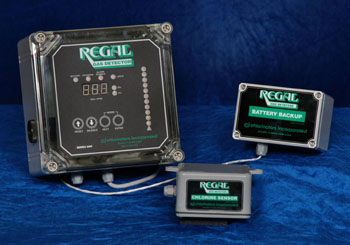

REGAL Series 3000 Gas Detector
|
