Regal Electronic Cylinder Scales Series ECS
|

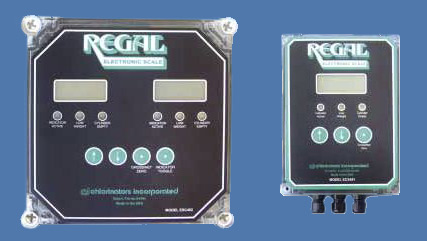

The REGAL Model ECS401 is a Single cylinder scale while the Model ECS402 is a Dual cylinder scale. Cylinder restraining bars and chains are provided to keep cylinders in an upright position. Scale base(s) are solid PVC with a height of 1.5" above floor level for ease of cylinder loading and unloading. Annunciator LEDs indicate event and programming conditions. Optional Low Weight Alarm Relays are available and are fully adjustable from the keypad. 4-20 milliamp analog outputs are available for remote indication or data logging. Design and Construction REGAL Series ECS Single and Dual Electronic Cylinder Scales offer an improved design consisting of solid PVC platforms that can easily accommodate Chlorine, Sulfur Dioxide or Ammonia 150 lb. gas cylinders. With the cylinders removed, the PVC platform(s) can be easily tilted up to facilitate cleaning beneath the platform(s) when necessary. Both Single and Dual REGAL Model ECS Scale Monitor(s) include state-of-the-art electronics in environment friendly NEMA 4X enclosures. Easy to read LCD displays present Gross or Net cylinder weights at the push of a keypad button while bright, easy to see, different color LEDs indicate programming and event conditions. REGAL Series ECS Scales are fully calibrated when shipped from the factory. A quick and easy installation of the scale components plus simple wiring by a licensed electrician and step-by-step instructions make short work of installation and start-up.
|
REGAL Series ECS Electronic Cylinder Scales are very important and recommended accessories that should be part of all REGAL Gas Feed System installations. REGAL Series ECS Scales are valuable diagnostic tools providing the user with instantaneous and accurate readings of Gross and Net cylinder weights on bright LCD displays.
