 You know the damaging effects of water hammer in your system. Leaking, noisy pipes and broken meters are commonplace. Want a reliable, economical solution?
Carlon valves to the rescue. Carlon has a line of two-way zero pressure differential slow closing solenoid valves available in 1/2"-2" with larger sizes available upon request.
Why choose a slow closing valve over a standard valve? It's all about value because, only slow closing valves reduce water hammer effects. Also, when you buy a Carlon slow closing valve at the same time you buy one of our meters, we will increase your meter warranty from the one year standard to seven years! That's measurable added
value you can count on.

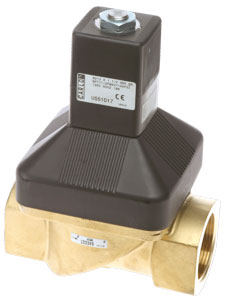

Carlon Solenoid Valve Details
| Materials: |
1/2" through 1" Brass body with NBR seal
1 1/4" through 2" Brass body with EPDM seal (allows for high temperature tolerance.) |
| Temperature Tolerances: |
1/2" through 1" 32 - 158ºF 1 1/4" through 2" (22) - 248ºF |
| Maximum Ambient Temperatures: |
131ºF |
| Pressure Range: |
1 - 140 PSI |
| Operating Voltages: |
120V Standard. Others available upon request |
| Protection Class: |
NEMA 4 |
 Carlon Y-Type Strainer Specifications
| Description: |
Style B, Y-Type screwed connections 250# cast iron body, with bushing and plug. |
| Features: |
Strainers may be cleaned without shutting down the system by removing end bushing. |
| Materials: |
Body – cast iron |
|
|
Screen – #40 stainless steel mesh backed by 1/2" stainless steel mesh |
|
|
Bushing – iron |
| Working Pressure: |
Steam – 250 psi @ 406ºF |
|
|
Water – 400 psi @ 150ºF |
Carlon Y-Type Strainer Dimensions
|
Size
|
Length
|
Height to Center
|
Weight
|
|
1/2"
|
3"
|
2 5/8"
|
2#
|
|
3/4"
|
4"
|
3 5/8"
|
3#
|
|
1"
|
5 1/8"
|
4 1/2"
|
4.5#
|
|
1 1/4"
|
5 1/8"
|
4 3/4"
|
5#
|
|
1 1/2"
|
5 3/4"
|
4 7/8"
|
8#
|
|
2"
|
7 1/4"
|
5 3/4"
|
15#
|
