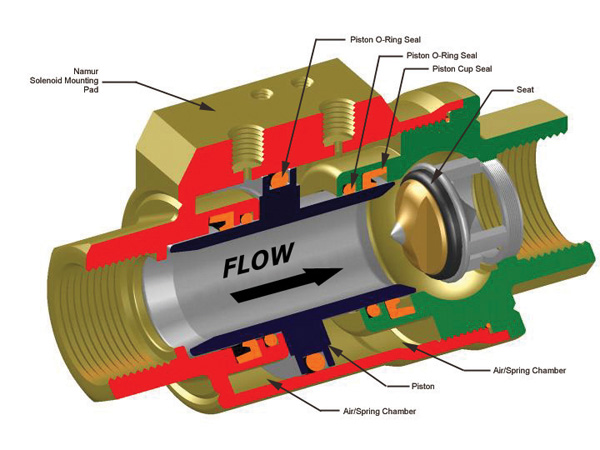

The VA Series combines a pneumatic actuator and fast on-off control valve into one body, eliminating packing glands, actuators and mounting kits. There are no exposed moving parts, eliminating pinch points and increasing operator safety. Since the actuator is part of the valve, costs are greatly reduced when compared to standard actuated valves. Operating life has been tested to well over 1,000,000 cycles, the balanced design reduces friction and wear. The stroke is linear and parallel to the flow, dramatically reducing the required force to close or open the valve. The internal waterway design was designed for optimum flow characteristics.
|
- Integrated pneumatic actuator
- NAMUR solenoid mounting pad
- Compact assembly
- Fast valve actuation
- High Cv (Flow Coefficient)
- High Cycle-Life
- Competetive price
- Complete accessory equipment
- Body - Nickel Plated Brass
- Seals - BUNA-N, Viton®, or EPDM
- Spring Return N.C.
- Spring Return N.O.
- Double Acting
|
- NPT Threaded (3/8" to 2")
(Viton Seals)
- Max. Temp - 302°F
- Max. Pressure - 150 PSIG
- Air Drying Equipment
- Pollution Control Equipment
- Process Control Applications
- Laundry Equipment
- Textile Dyeing & Drying
- Bottling & Dispensing Equipment
- Ink & Paint Dispensing
- Industrial Compressors
|
Data Sheet
VA Series On Off Valves
