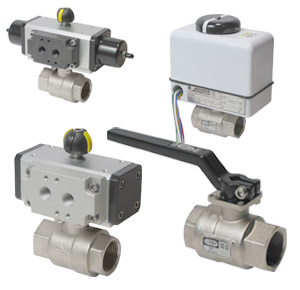

The 101 is a full port, brass, NPT threaded end actuated ball valve. It can be equipped with a manual handle or with direct mount pneumatic or electric actuators. The direct mount actuators eliminate the valve-actuator mounting kit, which adds unnecessary height and expense. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices.
- Actuated electrically, pneumatically, or manually
- Full Port for unobstructed flow
- 2-piece body
- Integrated mounting pad for actuators
- Compact assembly
- Complete line of accessories
- Seats & Seals - PTFE
- Body - Nickel plated brass
- Ball, & Stem - Brass
- Electric
- Pneumatic (spring return)
- Pneumatic (double acting)
- Manual Handle
- Temperature Range:
-4 to 300°F
- Max. Pressure:
925 PSIG (3/8" to 1/2")
725 PSIG (3/4" to 1")
580 PSIG (1 1/4" to 1 1/2")
465 PSIG (2")
365 PSIG (2 1/2" to 3")
- NPT Threaded (3/8" to 3")
- Air Drying Equipment
- Pollution Control Equipment
- Process Control Applications
- Laundry Equipment
- Textile Dyeing & Drying
- Bottling & Dispensing Equipment
