Stainless Steel,2-way,Full Port,Ball Valve,26 Series,Assured Automation One Piece Stem/Ball Trunnion Support Design provides for precision operation and positioning of the ball. This precise ball positioning is often not possible in more common multi-piece stem ball design. This also allows all sides to be used as an inlet or block port without leakage.

Features & Benefits

One piece stem and ball trunnion support design
Three seat design maintains proper ball position
Actuator mounting pad
Anti-static grounding device
Open and closed locking device for positional safety lockout
Flow plans for T & L ports can be field rearranged to meet many other flow plans
Body cavity fillers available for sizes 3/4" to 4"

Materials

Body: Carbon Steel or Stainless Steel
Seats: TFM

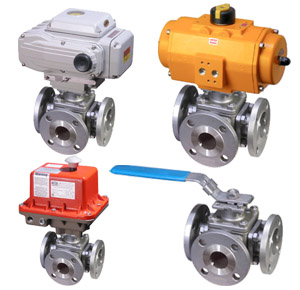

Available Actutors

Weatherproof Electric
Explosion Proof Electric
Pneumatic (single & double acting)
Manual Lever (Lockable)

Specifications

Max Temp: TFM: 475°F
Max Pressure:
Maximum differential pressure of 275 PSI, WCB - 285 PSI.
Hydrostatically pressure tested (body) and air pressure tested (seat) to the following:

Class 150:
Body: 275 PSI

Class 300:
Body: 700 PSI

Typical Applications

Air Drying Equipment
Sterilizers
Autoclaves
Pollution Control Equipment
Process Control Applications
Laundry Equipment
Textile Dyeing & Drying
Bottling & Dispensing Equipment
Ink & Paint Dispensing

Data Sheet
