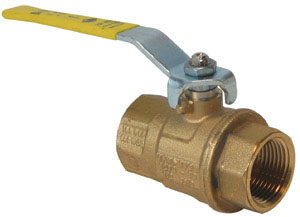

The 282 series manual ball valves are full port, brass, manual ball valves. They are available with NPT Female, NPT Male x Female, and Solder end connections. Four different manual handle styles are offered.
- Full Port for unobstructed flow
- Investment cast 2-piece body
- Blow-out proof stem
- Compact assembly
- Locking device available
- Adjustable stem packing
- 100% factory tested
- Seats & Seals - PTFE
- Body & End Cap - Brass
- Ball - Chrome Plated Brass
- Electric
- Pneumatic (spring return)
- Pneumatic (double acting)
- Manual Handle
- Temperature Range: up to 366°F
- Max. Pressure: 600 WOG - 150 WSP
- NPT Female x Female
- NPT Male x Female
- Solder
Data Sheet
