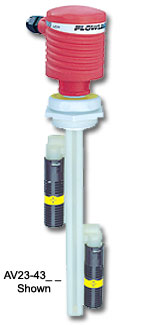

Smart-Trak Multi-Point Level Switch with Compact Relay Controller From Flowline
Application
This general purpose switch package provides a complete solution for automatic filling or emptying of a tank between two adjustable level switch points with a 10A latching compact relay controller for pump or valve actuation. The product is typically selected to atmospheric day tank, process vessel and waste sump applications. Specify the appropriate sensor technology and assembly dimensions.
Features
Fail-safe relay control of pumps and valves with 0-60 second time delay
Offered in 3 sensing technologies for broad application coverage
Easy setup with LED indicators for sensor, power and relay status
Rugged PP construction for use in challenging corrosive environments
Adjustable level switches make field adjustment fast and simple
Tech Tip
Sensor Technology
The AC powered relay controller has a latching 10A relay, adjustable time delay, LED indicators, NO or NC invert switch and UL fire retardant PP enclosure.
Ultrasonic
Broadly applied in chemical, solvent, hydrocarbon and light weight oil media
Vibration
Typically applied in wastewater media with light coating and/or foaming characteristics
Buoyancy
Best applied in clean water or water-like chemical media that is non-coating or scaling
