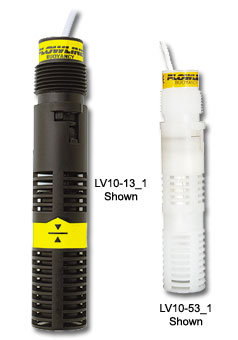

Switch-Tek Vertical Buoyancy Level Switch From Flowline
Application
The general purpose buoyancy level switch is a perfect choice for relatively clean water and chemical solutions with non-coating and/or scaling characteristics. Media examples include acetic acid and process water. The baffle body eliminates switch chatter caused by turbulence. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The sensor mounts vertically inside the tank on our Smart Trak or Switch-Pak fittings.
Features
Baffle body and dynamically stabilized float eliminate turbulence switch chatter
PP or PVDF sensor and cable rated NEMA 6 or IP68
15 VA dry contact with selectable NO or NC state via wire selection
Compatible with Flowline controller, alarm and fitting accessories
Tech Tip
For reliable service in highly corrosive media, select the PVDF material option. The rugged sensor features a PVDF body with a PFA cable. Its corrosive level made simple.
