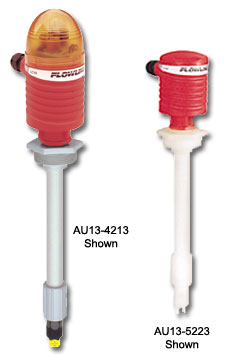

Switch-Pak Level Switch with Compact Relay Controller From Flowline

Application
This general purpose switch package provides a complete solution for high level spill prevention with a fixed level switch point and 10A compact relay controller for pump or valve actuation. The optional flash alarm brings immediate attention to tank high level conditions. The product is typically selected for corrosive bulk storage, day tank and waste sump applications. Specify the appropriate sensor technology, material and assembly dimension.
Switch-Pak, Level Switch, Compact Relay Controller, Flowline
Features
Fail-safe relay control of pumps and valves with 0-60 second time delay
PP or PVDF construction for use in challenging corrosive environments
Offered in 3 sensing technologies for broad application coverage
Optional strobe brings immediate attention to tank alarm conditions
PP enclosure rated NEMA 4X with 300° conduit swivel base
Tech Tip Sensor Technology
The AC powered relay controller has a 10A relay, adjustable time delay, LED indicators, NO or NC invert switch and UL fire retardant PP enclosure.

Switch-Pak, Level Switch, Compact Relay Controller, Flowline
Ultrasonic
Broadly applied in chemical, solvent, hydrocarbon and light weight oil media

Vibration
Typically applied in wastewater media with light coating and/or foaming characteristics

Buoyancy
Best applied in clean water or water-like chemical media that is non-coating or scaling.
Specifications
Length:
6" to 10' (15cm to 3m)
Switch points:
1 (set by factory)
Supply voltage:
120/240 VAC @ 50-60 Hz.
Contact type:
(1) SPST relay
Contact rating:
250 VAC @ 10A
Process temp:
F: -40° to 176°
C: -40° to 80°
Pressure:
150 psi (10 bar)
Wetted material:
PP / PVDF
Conduit entrance:
1/2" NPT
Enclosure rating:
NEMA 4X (IP65)
Process mount:
2" NPT (2" G)
Classification:
General purpose
