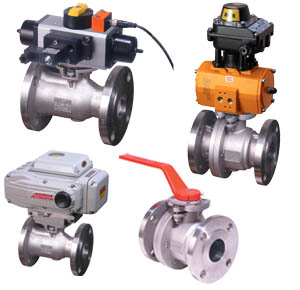

The 4000 Series (150 or 300 ANSI) flanged ball valve is available in full port or standard port design. The body is available in carbon steel or stainless steel, trim (ball and stem) is 316SS. The 4000 Series is Fire Tested with TFM seats providing superior high temperature performance and chemical resistance. ISO 5211 direct mounting with adjustable packing is a unique feature of the 4000 Series product line. It can be equipped with a manual handle or with direct mount pneumatic or electric actuators. The direct mount actuators eliminate the valve-actuator mounting kit, which adds unnecessary height and expense in many applications. A full range of accessory items is available including limit switches, solenoid valves, positioners and manual override devices.
- 42XX Full Port for unrestricted flow (2 Piece body)
- 41XX Standard port for economy (UNIBODY)
- Fire Tested API607 4th Edition & ISO 10497
- ASME
- NACE MR01-75 revision 2003 compliant
- Blow-out proof stem
- Electrically grounded ball & stem
- ISO 5211 mounting pad
- Adjustable packing with actuator mounted
- Actuators direct mount (up to 4”)
- Compact assembly
- Complete line of accessories
- Carbon steel body (WCB) with 316 (CF8M) ball and stem
- Stainless steel body (CF8M) with 316 (CF8M) ball and stem
- TFM Seats
- Electric
- Pneumatic (spring return)
- Pneumatic (double acting)
- Manual Handle
- Class 150
WCB: 285 psig @ 100F
CF8M: 275 psig @ 100F
- Class 300
WCB: 740 psig @ 100F
CF8M: 720 psig @ 100F
- Saturated Steam rating
Class 150 = 200 PSIG
Class 300 = 250 PSIG
- 1/2" to 4" ANSI Class 150 or 300
- Refineries
- Petrochemical
- Chemical Process Equipment
- Process Control Applications
- Water and Waste applications
- Pipeline applications
