Stainless Steel 3-way Full Port Ball Valve 33D Series

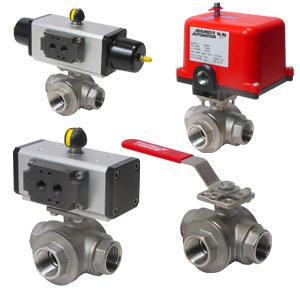

The 33D is a full port, 3-way, 316 stainless steel, NPT threaded end diverter valve. It can be equipped with a manual handle or with direct mount pneumatic or electric actuators. The direct mount actuators eliminate the valve-actuator mounting kit, which adds unnecessary height and expense. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices.

Features & Benefits

• Full Port for unrestricted flow
• Blow-out proof stem
• Live-loaded Pyramidal stem seal design
• Integrated mounting pad for actuators
• Compact assembly
• Complete line of accessories


Materials

• Body, Ball, & Stem - 316SS
• Seats - RPTFE
• Stem Seals - PTFE, Viton® or RPTFE

Available Actutors

• Electric
• Pneumatic (spring return)
• Pneumatic (double acting)
• Manual Handle

Specifications

• Temperature Range:
  -20 to 400°F
• Max. Pressure:
  800 PSIG


End Connection

• NPT Threaded (1/4" to 2")


Typical Applications

• Air Drying Equipment
• Sterilizers
• Autoclaves
• Pollution Control Equipment
• Process Control Applications
• Laundry Equipment
• Textile Dyeing & Drying
• Bottling & Dispensing Equipment
• Ink & Paint Dispensing
