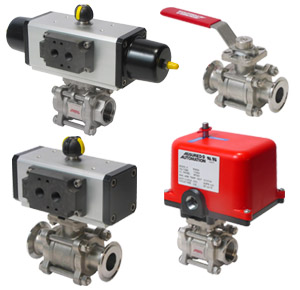

The 36 is a full port, 316 stainless steel, 3 piece ball valve. It is available with threaded ends (36N), socket weld ends (36S), quick clamp ends (36C) or quick clamp ends with cavity filler seats (36CCF*). It can be equipped with a manual handle or with pneumatic or electric actuators. A full range of accessory items are available including limit switches, solenoid valves, positioners and manual override devices.
- Silicone Free
- Full Port for unobstructed flow
- Live-loaded Pyramidal stem seal design
- Quick quarter-turn rotation
- High cycle stem design
- Integrated mounting pad for actuators
- Compact assembly
- Complete line of accessories
- Seats - RPTFE
- Stem Seals - PFFE, Viton® or RPTFE
- Body, Ball, & Stem - 316SS
- Electric
- Pneumatic (spring return)
- Pneumatic (double acting)
- Manual Handle
Temperature Range: -30 to 380°F
Max. Pressure: 1000 PSIG
- 1/4" to 3" NPT Threaded
- 1/4" to 2" Socket Weld
- 1/2" to 4" T-Clamp
- 1/2" to 4" T-Clamp w/Cavity Filler
- Air Drying Equipment
- Sterilizers
- Autoclaves
- Pollution Control Equipment
- Process Control Applications
- Laundry Equipment
- Textile Dyeing & Drying
- Bottling & Dispensing Equipment
- Ink & Paint Dispensing
Data Sheet
