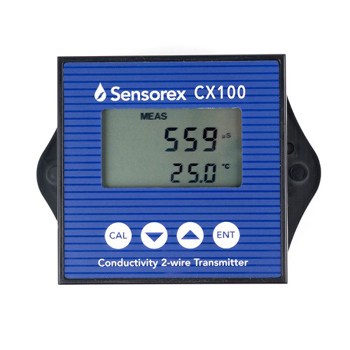

Sensorex CX100 Loop Powered 4-20mA Conductivity Transmitter
 Our CX100 is an isolated output 4-20mA industrial transmitter for reading contacting conductivity sensors. Easily power the unit with available two-wire power supply loop. Ideal for connecting to a PLC for advanced control systems. Versatile mounting options for wall or panel mount.
Facilitates easy sensor maintenance with output ‘HOLD’ function Accurate conductivity / TDS measurements Flexible configurations with 6 selectable conductivity ranges Compatible with a wide variety of contacting conductivity sensors One year limited warranty
Note: Transmitter is only compatible with sensors with tinned leads.
Product Specifications
Measurement Range: (R1) 0-19.99 uS/cm, 0.01 uS/cm resolution; (R2) 0-199.9 uS/cm, 0.1 uS/cm resolution; (R3) 0-1999 uS/cm, 1 uS/cm resolution; (R4) 0-10.00 mS/cm, 0.01 mS/cm resolution; (R5) 0-19.99 mS/cm, 0.01 mS/cm resolution; (R6) 0-199.9 mS/cm, 0.1 mS/cm resolution Cell Constants: k=0.1 (R1-R5), k=1.0 (R1-R6), k=10 (R2-R6) Measurement Accuracy: +/- 1% full scale range Temperature Range: 0 °C to 100 °C , 0.1° C resolution, +/- 0.5 °C accuracy Calibration Mode: Automatic with built-in standard solutions manual cell constant adjustment Output: Isolated DC 4-20mA Enclosure: NEMA 4X IP65, with push-button control pad. HWD: 96 mm (3.77?) x 96 mm (3.77?) x 66mm (5.20?), 1/4 DIN Mounting Options: Panel or Wall mount Ambient Operating Temperature: 0° C to 50° C Display: Dual display custom LCD Temperature Compensation: Pt100 RTD with automatic compensation or manually configured Power Requirement: 12-24V DC, maximum 600O load Certifications: CE Warranty: One year limited warranty
Comparison Chart for Conductivity Transmitters
Instruction Sheet for CX100 Loop-Powered 4-20mA Transmitter
