CX10 Conductivity 4-20mA Transmitter
From Sensorex

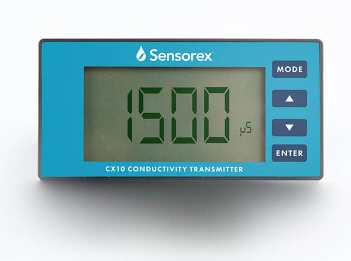

Sensorex CX10 Conductivity 4-20mA Transmitter

The CX10 is a convenient and cost effective solution for monitoring conductivity or resistivity of water. Save space in your panel with the small footprint 1/8 DIN case. This EC meter displays conductivity or resistivity readings on an easy to read LCD screen. The 4-20mA signal output can be conveniently integrated into a range of process control systems.

• Easy to install 1/8 DIN Case

• Isolated, reversible 4-20mA output

• Clear LCD displays conductivity, resistivity, or temperature

• 100-240 VAC power supply

Note: Transmitter is only compatible with sensors that have spade lug or tinned lead connectors.

Product Specifications

• Cell Constant: 0.01, 0.1, 1.0 (2 electrode)

• Reference Temperature: 25°C, factory set

• Temperature Coefficient: 2.00 or 0.00%, user selectable

• Temperature Sensor: Thermistor: 10k ohm at 25°C

• Operating Temperature: -10°C to 120°C (+/- 0.3°C, 0.1°C resolution)

• Output: 4-20mA current (isolated, reversible)

• Maximum Load: 500 ohm

• Output Accuracy: +/- 0.03mA

• Isolation Voltage: 500VDC

• Keys: Audio feedback for all keys

• Power: 100VAC to 240VAC, 50/60Hz

• Ambient Temperature Range: 0.0°C to 50.0°C

• Enclosure: 1/8 DIN (3.78" L x 3.54" W x 1.89" H)
