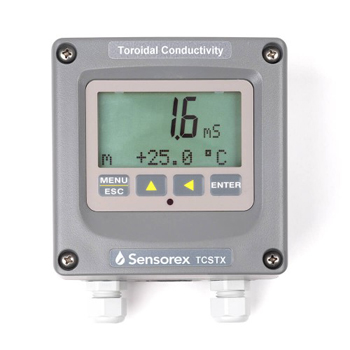

Sensorex TCSTX Online Toroidal Conductivity Transmitter with Graphical Display
 Our TCSTX online toroidal conductivity meter and 4-20mA transmitter is built for water treatment monitoring in aggressive chemical and coating applications. The unit features isolated outputs with user-programmable temperature compensation. Durable construction with enclosure rated at NEMA 4X (IP65). Simple installation for wall, pipe, panel, or rail mounting. Use with our TCS3020 Toroidal Conductivity Sensor for online conductivity monitoring with minimal maintenance.
Reliable process monitoring: Displays conductivity & process temperature values simultaneously Simple system integration: Loop-powered (16-35V DC) with isolated 4-20mA output signal Perfect for use in all environments: LCD display with NEMA 4X, IP65 enclosure For use with toroidal conductivity sensors: Online conductivity measurement with minimal maintenance One year limited warranty: We stand behind all our products with the Sensorex Guarantee
Note: Transmitter is only compatible with sensors with tinned leads.
Product Specifications
Measurement Range: 0-2,000 uS / 2.000 mS / 20.00 mS / 200.0 mS / 2000 mS – User selectable Analog Output 1: Isolated DC 0/4 -20mA , corresponding to conductivity or resistivity. Max load 500 Ω Enclosure: NEMA 4X (IP65) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant. Response Time: 6 seconds to 90% step input at lowest setting Mounting Options: Wall, pipe, panel, or rail mount Ambient Operating Temperature: -20° C to 60° C Storage Temperature: -30° C to 70° C Temperature Compensation: Pt100RTD or Pt1000RTD. ATC is user selectable 0-4%/Deg C Power Requirement: 16-35V DC (2-wire device) Warranty: One year limited warranty Dimensions: 4.4" (112mm) H x 4.4'” (112mm) W x 3.5" (89mm) D Weight: 1lb (0.45Kg)
Comparison Chart for Conductivity Transmitters
Specification Sheet for TCSTX Online Toroidal Conductivity Transmitter
Instruction Sheet for TCSTX Online Toroidal Conductivity Transmitter
