M128 Meter System From Stenner

Select Stenner's M128 Meter System, pre-assembled and ready for installation, for 1:128 dosing to poultry water.

In livestock operations, stock solutions are traditionally run through non-electric water driven proportioners or medicators for 1:128 dosing of sanitizers, disinfectants, nutrients and medications. The water driven proportioner is prone to failure from chemicals deteriorating seals, pistons and O-rings. Debris and solids from the water source interfere with the operation and cause failure.

Stenner's M128 medicator is unaffected by undiluted chemicals or debris from the water source. The solution is pumped through the suction line, peristaltic tube and discharge line so it doesn’t come in contact with the pump’s moving parts. The medicator injects directly into the water line eliminating the need for a water bypass. When there is power to the pump and when utilizing a house controller, the standby setting can stop the pump from injecting, due to the internal signal splitter, and still register water consumption to the controller.

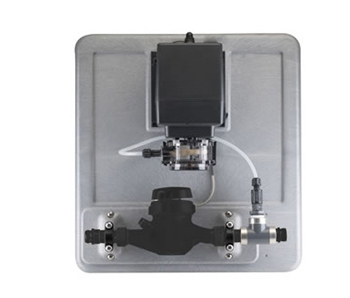

The M128 Meter System is optimal for turnkey installations. The design includes the medicator and a dry contact water meter in an all in one system where the components are mounted at the factory on a heavy duty panel to affix to a wall. Select a 3/4" or 1", plastic water meter offered as 1, 2, 4 or 10 pulses per gallon or 1 pulse per liter.

Stenner's Unique Features

• Easy and fast pump tube replacement without tools with the patent pending QuickPro® pump head.

• Simple service with periodic tube and duckbill replacement.

• The system provides convenient service accessibility.

How It Works

Activated by a dry contact water meter, the M128 pump is pre-set to ensure accurate delivery at 1 ounce per gallon and is adjustable for meter pulse rates of 1, 2, 4 or 10 pulses per gallon or 1 pulse per liter. The medicator is pre-set to work with the tube size in the selected model.

M128 Meter System Installation Instructions
M128 Pump Manual
M128 Stennicator Flyer
Catalog
Chemical Resistance Guide

Output

NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.

* Santoprene® is a registered trademark of Exxon Mobil Corporation.
** Versilon™ is a registered trademark of Saint-Gobain Performance Plastics.
† Pellathane® is a registered trademark of The Dow Company.

Plastic Water Meter

Flow Rates*

* Continuous Flow: The meter size should be selected based upon continuous flow, gpm, as opposed to pipe size.

** 1 1/2" meter may include plastic or lead free brass couplings.

Pump Dimensions

M128 pump

Shipping Weight: 10 lbs (4.5 kg)

Box Dimensions: 14 x 9 x 9 in. (35 x 23 x 23 cm)

M128 Meter Systems

Shipping Weight: 19 lbs (8.4 kg)

Box Dimensions: 24 x 12 x 23 in. (60 x 30 x 58 cm)
