Econ FP Meter System From Stenner

Select Stenner's Econ FP Meter System for drinking water disinfection or pH control in private wells.

If looking for a compact proportional metering system for light duty private water well applications, the Econ FP Meter System may be your answer. Disinfection, pH control and oxidation are some of the water treatment processes required for any locations using private water supplies such as residential homes or small rural communities. Treating water proportionally to the water system's flow rate is often a preferred method.

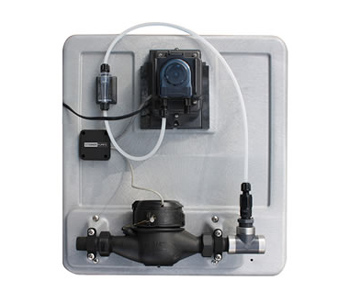

The Econ FP Meter System includes the Econ FP pump and a dry contact water meter. The system is shipped from the factory with the components pre-mounted on a heavy duty panel ready to be attached to a wall. The water meter is compliant with the low lead law. The 3/4" or 1" plastic water meter is offered as 1, 2, 4 or 10 pulses per gallon. Additional features include a junction box for organized wires and a flow indicator for verifying the solution is pumping. Like all Stenner peristaltic metering pumps the Econ FP is self-priming with no loss of prime due to gaseous solutions.

Stenner's Unique Features

• Almost effortless tube replacement, without tools, with the patented quick release pump head.

• A junction box keeps wires concealed for an attractive appearance.

• The design allows convenient accessibility.

How It Works

The Econ FP is a multi-functional pump with three operating modes. When installing the FP Meter System; select the mode displayed as SECONDS on the digital control pad. The pump accepts a dry contact signal from the water meter and the pump runs for a set amount of time for each signal received.

There are five operating time ranges displayed, the maximum pump operating time is adjustable from 10% to 100%.

1 SECOND = 0.1 to 1.0
5 SECONDS = 0.5 to 5.0
10 SECONDS = 1.0 to 10.0
20 SECONDS = 2.0 to 20.0
60 SECONDS = 6.0 to 60.0

Output

NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs.

* Santoprene® is a registered trademark of Exxon Mobil Corporation.
** Versilon™ is a registered trademark of Saint-Gobain Performance Plastics.
† Pellathane® is a registered trademark of The Dow Company.

Plastic Water Meter

Flow Rates*

* Continuous Flow: The meter size should be selected based upon continuous flow, gpm, as opposed to pipe size.

** 1 1/2" meter may include plastic or lead free brass couplings.

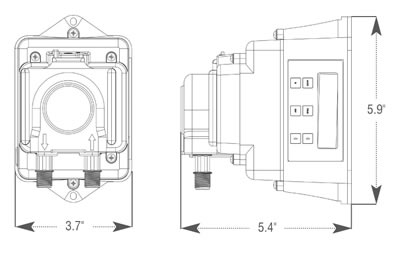

Pump Dimensions

Shipping Weight: 4 lbs (1.8 kg)

Box Dimensions: 8 x 7 x 10 in. (20 x 18 x 25 cm)

Econ FP Meter System

Shipping Weight: 17 lbs (7.5 kg)

Box Dimensions: 24 x 12 x 23 in. (60 x 30 x 58 cm)
