Econ FP Meter System From Stenner

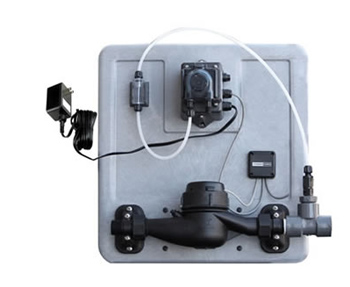

 Stenner's proportional pump for the injection of livestock supplements at the fixed ratio of 1:128 is the Econ Stennicator. Saving time is a plus for busy farmers and the new Econ Stennicator Meter System is pre-assembled and ready for installation. The components are pre-mounted on a heavy duty panel that is attached to a wall.
Traditional medicators and proportioners are typically hampered by poor water quality or the water bypass that can restrict water flow. In addition, some aggressive solutions attack the internal working parts of the water driven pump. The Stennicator does not restrict flow, the pump injects at the 1:128 ratio straight into the water line. The chemicals injected are contained in the peristaltic pump tube and the suction and discharge lines and do not touch the moving parts in the pump. Like all Stenner peristaltic metering pumps, the Stennicator is self-priming with no loss of prime due to gaseous solutions.
How It Works
The Stennicator runs on electricity and is activated by a dry contact, pulsing water meter. An internal relay allows the water meter pulse to send a signal to the house controller so water consumption continues to register. The system includes a lead-free plastic water meter, select 3/4" 1" and either 1 or 10 pulses per gallon or 1 pulse per liter. The Single meter system provides 1:128 injection for water flow rates up to 2.7 gallons per minute (162 gallons per hour). The Dual meter system includes two pumps to keep up with water flow rates up to 5.4 gallons per minute (325 gallons per hour).
Unique Stenner Features
Periodic tube replacement, without tools, almost effortless with the patented quick release pump head. Whiteboard animation video illustrates a Stennicator pump on a poultry farm. The system design allows convenient accessibility.
Meter System Installation Instructions
Econ Stennicator Pump Manual
Econ Stennicator Flyer
Catalog
Chemical Resistance Guide
Output
|
|
| Approximate Output @ 60Hz |
| 2.7 |
80 |
74 |
5.5 |
|
|
 |
NOTICE: The information within this chart is solely intended for use as a guide. The output data is an approximation based on pumping water under a controlled testing environment. Many variables can affect the output of the pump. Stenner Pump Company recommends that all metering pumps undergo field calibration by means of analytical testing to confirm their outputs. |
| Specifications |
|
| Output Control |
Six button control panel with LCD display |
| Maximum Working Pressure |
80 psi (5.5 bar) |
| Maximum Operating Temperature |
104°F (40°C) |
| Maximum Suction Lift |
25 ft (7.6 m) vertical lift, based on water |
| Motor Type |
24 VDC, brushless |
| Approximate Shaft RPM |
60 |
| Duty Cycle |
Continuous |
| Motor Voltage (Amp Draw) |
120V 60Hz (1.7) |
| Power Cord Type |
STP-2W |
| Power Cord Plug End |
Wall adapter power supply 100-120V, 60Hz
0.25 input, two prong polarized 24VDC, 1.25A,
class II output |
Econ Stennicator Pump
| Specifications |
|
| Output Control |
on/off switch, fixed Output 1ppg, 10 ppg, or 1 ppl |
| Reproducibility |
+/-2% |
| Maximum Working Pressure |
80 psi (5.5 bar) |
| Maximum Operating Temperature |
104ºF (40ºC) |
| Maximum Suction Lift |
25 ft (7.6 m) vertical lift, based on water |
| Motor Type |
24 VDC, brushless |
| Approximate Shaft RPM |
60 |
| Duty Cycle |
Continuous |
| Max Viscosity |
50 cps |
| Motor Voltage (Amp Draw) |
120V 60Hz (0.17) |
| External Power Supply |
100-120VAC, 60 Hz |
| Power Cord Type |
STP-2W |
| Power Cord Length |
10 ft (3.05 m) |
| Power Cord Plug End |
Wall adapter power supply 100-120V, 60Hz
0.75 input, two prong, polarized 24VDC, 1.25A,
Class II output |
| Environment |
Indoor & outdoor |
| Materials of Construction |
|
| All Housings |
Polycarbonate |
| Pump Tube & Check Valve Duckbill |
Santoprene®*, FDA approved |
| Pump Head Rollers |
Polyethylene |
Suction/Discharge Tubing,
Ferrules |
Polyethylene, FDA approved |
| Tube Fittings |
Polypropylene, NSF listed |
| Check Valve Fittings |
Type 1 Rigid PVC, NSF listed |
| Connecting Nuts |
PP or Type 1 Rigid PVC |
| Suction Line Strainer |
PP or Type 1 Rigid PVC body with Type 1
Rigid PVC cap, NSF listed; ceramic weight |
| All Fasteners |
Stainless steel |
* Santoprene® is a registered trademark of Exxon Mobil Corporation.
** Versilon™ is a registered trademark of Saint-Gobain Performance Plastics.
† Pellathane® is a registered trademark of The Dow Company.
Plastic Water Meter
Flow Rates*
| 3/4" |
0.25 to 22 |
1 |
2 |
4 |
10 |
| 1" |
0.75 to 50 |
1 |
2 |
4 |
10 |
| 1 1/2" |
2.0 to 100 |
1 |
2 |
4 |
10 |
| Specifications |
|
| Accuracy |
+/-2% when operating between
minimum and maximum flow range |
| Temperature |
Range 35-122ºF (1.7-50ºC) |
| Pressure Ratings |
15-100 psi (1.0-6.9 bar) |
| Maximum Current |
20mA |
| Maximum Voltage |
24VDC or VAC |
| Sensor |
Reed Switch |
| Cable Length |
6 ft (1.8 m) |
| Materials of Construction |
|
| Body** |
Engineered reinforced plastic (nylon) |
| Internal |
Engineered thermoplastic |
| Magnet |
Alnico |
Pump Dimensions
Econ Stennicator Meter System Single
Shipping Weight: 17 lbs (7.5 kg)
Box Dimensions: 24 x 12 x 23 in. (60 x 30 x 58 cm)
Econ Stennicator Meter System Dual
Shipping Weight: 20 lbs (8.8 kg)
Box Dimensions: 24 x 12 x 23 in. (60 x 30 x 58 cm)
|
