Flange Mount Portable Mixers Heavy Duty Series JGF from Neptune Mixer Company

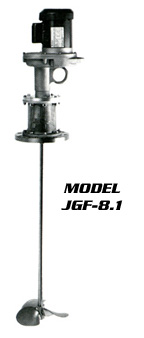

Heavy Duty Portable Mixers Series JGF

Gear Drive, Flange Mount Heavy Helical Gear, 350 RPM, Grease Lube

Compact mixers for the most popular mixing applications. Grease filled gearbox eliminates oil seal and the possibility of oil contamination of process.

Features

• No clutches to slip, wear or replace.

• 316SS propellers and shafts are standard. Optional coatings such as rubber, PVC or Teflon® also available.

• Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.

• Vibration-absorbing pad standard.

• Motors are available in TEFC or explosion-proof enclosures (1750 rpm, 56C frame). Air motors also available.

• Gears run in grease lubrication. Cannot leak oil.

• All JGF mixer shaft bearings are permanently lubricated.

• Variable speed drives also available.

• Cast aluminum housing.

• Flange stuffing box rated to 15 PSI.

• Standard mounting flange is 6" carbon steel, 316SS optional.

• Optional flanges available in 8", 10", 12" or 14".
