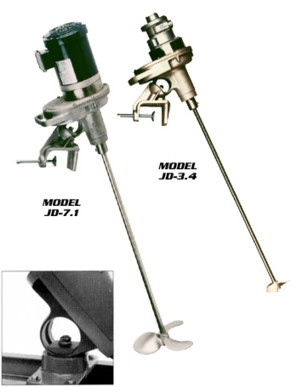

Heavy Duty Direct Drive Lubricated Portable Mixers Series JD
Direct Drive, Clamp or Cup Plate Mount, 1750 RPM, Grease Lube
This mixer was engineered to meet the need for a large direct drive mixer with a housing that cannot leak oil.
Features
Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.
316SS propellers and shafts are standard. Optional coatings such as rubber, PVC or Teflon® also available.
JD mixers have adjustable angles of entry by indexed ball-and-socket design to achieve different process results.
Motors are available in TEFC or explosion-proof enclosures (1750 rpm, 56C frame). Air motors also available.
Vibration-absorbing pad standard.
All JD mixer shaft bearings are permanently lubricated.
Variable speed drives also available.
Cast aluminum housing.
Fixed cup plate mount optional.
