series JG Heavy Duty Portable Mixers - Gear Drive, Clamp or Cup Plate Mount
Gear Drive Mixer, Clamp or Cup Plate Mount Heavy Helical Gear, 350 rpm, Grease Lube
Neptune's most powerful mixers for the most difficult mixing applications. Grease filled gearbox eliminates oil seal and the possibility of oil contamination of process.
Features
No clutches to slip, wear or replace.
316SS propellers and shafts are standard. Optional coatings such as rubber, PVC or "Teflon" also available.
Square pitch 1.0 ratio marine propellers are used exclusively. Flow coefficients and power consumption characteristics equal those of the best hydrofoil impeller designs.
Vibration-absorbing pad standard.
Motors are available in TEFC or explosion-proof enclosures (1750 rpm, 56C frame). Air motors also available.
Gears run in grease lubrication. Cannot leak oil.
All JG mixer shaft bearings are permanently lubricated.
Variable speed drives also available.
Cast aluminum housing.
Mounting clamp has adjustable angle of entry by indexed ball-and-socket design to achieve various process results.
Fixed cup plate mount optional on 1/3 HP through 1-1Ú2 HP.
Standard on 2 HP and larger models.

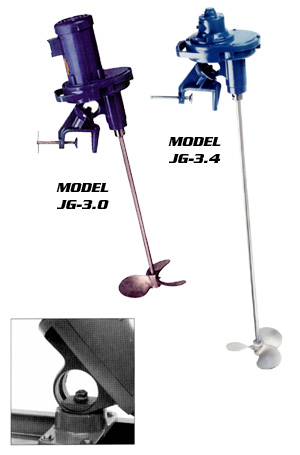

Series JG Heavy Duty Portable Micer Models
Series JG Heavy Duty Portable Mixers
