Kenco Safeguard Level Gauge

U.S. Patent Number 4693117

Application:

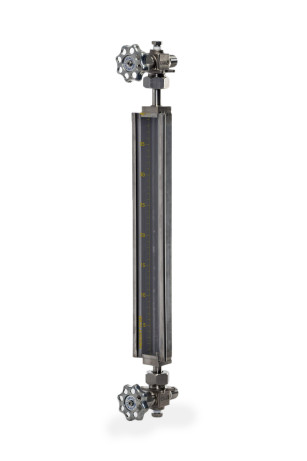

Safeguard gauge replaces tubular glass that is mounted between tubular gauge glass valves. The packing nut on the tubular valve tightens around the metal nozzles of the Safeguard gauge, not glass! Nozzles match the O.D. of 5/8" glass or 3/4" glass.

Safety:
Sight tube is totally enclosed on three sides by a metal frame and on the front with a clear, Polycarbonate shield.

One Piece Assembly:
One continuous gauge provides total visibility of the liquid level of a tank. (Maximum length is 25 feet). No stacking of gauges is needed because of this design.

Economical:
One Liquid Level Gauge per tank with two valves gives the full view of the liquid level in the tank. (KENCO KTV Valves must be ordered seperately)

Easy To Install:
Remove the broken gauge glass from the stuffing box of the valve. Insert the 5/8" or 3/4" metal nozzles into the existing valves. The stuffing box seals around the metal nozzle, not the glass.

Volume And Height Sheilds:
The Polycarbonate shield can be supplied with various scales indicating height in inches, calibration rate, or tank volume. Refer to the Specifications tab to see the assortment of standard shield options.

Specifications:

OUTSIDE DIAMETER OF TUBULAR CONNECTION:
62 = 5/8" O.D.
75 = 3/4" O.D.

HOUSING MATERIAL:
C = Zinc Plated Carbon Steel
A = All Wetted Parts 316 Stainless Steel with 304 Stainless Steel Frame
W = All Wetted Parts 316 Stainless Steel with Zinc Plated Carbon Steel Frame
PC = All Wetted Parts PVC with Carbon Steel Frame
PS = All Wetted Parts PVC with 304 Stainless Steel Frame

SIGHT TUBE MATERIAL:
5/8" O.D. Standard Glass

*Other Sight Tube Materials Available. Consult Factory For Options.

SEALS:
V = Fluorocarbon
A = Aflas
B = Buna-N
TES = PTFE Encapsulated Silicone
E = Ethylene Propylene

*Other Seal Materials Available. Consult Factory For Options.

SHIELD OPTIONS:

RH
The Rate/Height shield is used for checking the pump rate of a chemical pump. It is calibrated in QTS/24 Hrs., ML/Min and has a height scale labeled in 1/4" increments.



H
The Height shield is marked in 1/4" Increments and labeled every inch.



MRH
The Metric Rate/Height shield is calibrated in ML/Min and Liters/24 hrs. The height scale is labeled in 1 CM divisions.



MH
The Metric Height shield is marked in 1 CM increments and labeled every 5 CM.



M
The Expanded Metal shield is made from flattened expanded metal and is available in electroplated carbon steel or 304 stainless steel.



L
The Clear Polycarbonate shield has no markings, and provides 100% visibility as well as environmental protection.


CUSTOM SHIELDS: KENCO can provide custom scales to meet your needs. The Polycarbonate custom scales are usually engraved and paint-filled. If you are needing scales indicating tank volume or other scale calibrations, please consult the factory.

* NOTE: Gauge assembly does not include KTV Valves. KENCO KTV Valves must be ordered seperately.

** IMPORTANT: Pressure and temperature are dependent on the length of glass and the elastomer chosen. Please consult the factory for minimum and maximum pressure and temperature constraints.
