Kenco 929 Series Pump Setting Gauge

Applications:
The 929 Series Pump Setting Gauge provides a means for checking the pumping rate of any chemical pump under actual pumping conditions in one minute. The gauge mounts in the pump's suction line between the reservoir tank and the pump. It provides a visual gauge showing the liquid level in the reservoir in addition to a rapid means for setting the pump. The maximum pump rate for the 929 Series is 10 gallons per day, with each mark on the scale representing 1 quart per 24 hours. Models are available with a coupler plug so that the unit can be easily disconnected for calibrating several chemical pumps.

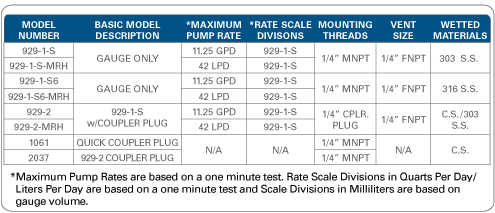

Specifications:

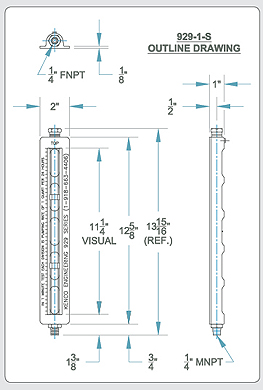

MODEL 929-1-S
Gauge mounts in suction line between reservoir and chemical pump and allows you to accurately calibrate the pump to the desired amount of chemical to be injected. It provides a visual indication of liquid in the reservoir as well as a rapid means for setting the chemical pump.

• 13" Cast Aluminum Frame

• NO Test Valve

• Wetted Parts 303 Stainless Steel, Aflas O-Ring Seals, and Glass

• 1/4" MNPT Mounting Thread

• 1/4" FNPT Vent

• Each Division is Pump Rate of 1 Qt/24 Hrs.

MODEL 929-1-S6
Same as 929-1-S except with 316 Stainless Steel wetted metal parts.

MODEL 929-1-S-MRH
Same as 929-1-S except with a clear polycarbonate sight tube shield with silk screened Metric Rate and Height scales. Scales are in Centimeters, Millimeters and Liters Per Day based on a one minute test.

• 13" Cast Aluminum Frame

• NO Test Valve

• Wetted Parts 303 Stainless Steel, Aflas O-Ring Seals and Glass

• 1/4" MNPT Mounting Thread

• 1/4" FNPT Vent

• Polycarbonate Metric Rate/Height Shield

• Each Division is Pump Rate of 1 Ltr/24 Hrs.

MODEL 929-2
Same as 929-1-S except lower gauge connection is a 1/4" quick disconnect plug meeting industrial Interchangeability requirements of MIL-C-4109. This allows gauge to be easily moved to various quick disconnect coupler locations.

• 13" Cast Aluminum Frame

• Coupler Plug for Movable Installation

• NO Test Valve

• Wetted Parts 303 Stainless Steel/Carbon Steel, Aflas o-ring seals and Glass

• 1/4" Coupler Mounting Plug

• 1/4" FNPT Vent

• Multiple Point Use

• Each Division is Pump Rate of 1 Qt/24 Hrs.
