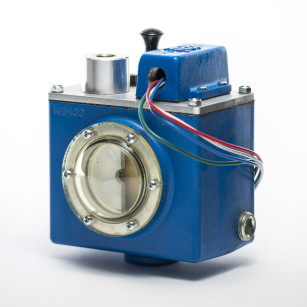

Kenco KLCM Oil Level Controller

[SINGLE SWITCH FOR LOW LEVEL ALARM IN INTRINSICALLY SAFE  ENCLOSURE]


Operating Principles:
The KENCO Oil Level Controllers are designed to control a constant oil level in the crankcase of stationary engines, compressors, and mechanical lubricator boxes. The KENCO oil controller works in conjunction with an overhead oil supply system which feeds the oil level controller. As the oil is consumed, the oil controller supplies the required amount of oil to maintain a proper level in the crankcase. The oil controller maintains the proper amount of oil in the crankcase by using a float controlled valve. The valve opens and closes as oil is needed in the crankcase to provide a constant oil level.

The oil level switch in the KLCM is an electric switch in a CSA approved Class III, Type 4 enclosure. The float switch monitors the oil in the crankcase. The level within the crankcase directly corresponds with the oil level in the oil level controller housing. If the oil level in the crankcase drops 3/4" past the centerline, the switch will trip sending an alarm.

Applications:

• Intrinsically safe applications with an approved safety barrier

• Stationary engines and compressors

• Mechanical lubricators

• Pumps

Features:

• Reduces maintenance by maintaining a constant lube level.

• Protects against lubrication failure

• CSA approved Class III, Type 4

• Controller mechanism fully removable without draining oil

• Easy view convex sight window

• High pressure applications up to 70psi

• Fire Safe Valves available

• Oil inlet allows for piping configuration from any direction

• Oil outlets on either side of housing and in the bottom to allow for various piping configurations

• Switch test button standard

• Direct mount adapters eliminate equalizing problems and reduce installation costs

• Oil level controllers for synthetic oil applications now available

Specifications:

STANDARD MATERIALS OF CONSTRUCTION:
Valve Seat - Buna-N
Optional Valve Seat Material - Fluorocarbon
Valve Orifice - Aluminum
Housing - Aluminum
Float Material - Closed Cell Polyurethane
Oil Inlet Screen - 20 Mesh Brass Cloth
Sight Window - Nylon (UV Stabilized)

PROCESS CONNECTIONS:
Oil Inlet Connection - 1/2" FNPT
Oil Outlet Connections - (3) 3/4" FNPT

OIL INLET DATA:
Static Head Pressure Range - 2-25 ft. / 0-9.5 psi
Maximum Temperature - 180°F / 82°C
High Pressure Models -
-A = 10-35 psi
-B = 36-70 psi

MINIMUM FLOW RATE TEST RESULTS:
(Low Pressure Tested at 32ºF with SAE 30)
2' head - 1.141 GPH
4' head - 2.122 GPH
7' head - 2.853 GPH
12' head - 3.043 GPH
(High Pressure Tested at 20ºF with SAE 30)
5 PSI - 0.163 GPH
20 PSI - 0.266 GPH

ELECTRICAL SWITCH DATA:
Switch Trip Point - 3/4" Drop
Switch Rating - 10 amp, 125, 250 VAC or VDC
Maximum Temperature - 180ºF / 82ºC
Electrical Connection - 1/2" FNPT
Standard Circuitry - Single Pole Double Throw
Wire Leads - 18 AWG X 24" Long

* CSA Approved For Class III, Type 4

WIRE COLOR CODE:
Red - Normally Closed
Blue - Normally Open
White - Common

SPECIAL FEATURE:
Switch Test Button

MOUNTING ADAPTER OPTIONS:
-1 = Clark MA & CFA
-2 = Clark HMB & TMB Compressor
-3 = Clark RA, HRA, HBA, HCA, HLA & TLA
-4 = Ingersol-Rand SVG & KVS
-5 = Ingersol-Rand KVG
-6 = Cooper-Bessemer GMW
-7 = Cooper-Bessemer GMV
-8 = Cooper-Bessemer GMX
-9 = Universal Mounting Bracket
-9MS = Housing with 4 Integral Mounting Studs
-10 = Universal Mounting Bracket with Slotted Adapter
-11 = Mechanical Lubricator Mounting Adapter
-12 = Post Mounting Adapter for 1/2" Pipe
-14 = White Compressor
-15 = Ingersoll-Rand XVG & PVG
-16 = Cooper-Bessemer BMV & 275
-17 = Waukesha VHP Engine (1) Bolt Hole Inspection Door
-18 = Waukesha VHP Engine (1) Bolt Hole Inspection Door with Low Flow Meter
-19 = Ingersoll-Rand Rotary
-21 = Cooper-Bessemer 2400 SERIES 6
-24 = Ariel JGE, JGH, JGK, JGR, JGT & JGW Compressors
-25 = Ariel JGU (4 & 6 Cylinder), JGZ (4 & 6 Cylinder) Compressors
-27 = Waukesha VHP Engine (2) Bolt Hole Inspection Door
-37 = Waukesha Inspection Door P9390
-38 = Waukesha Inspection Door P9390 with Low Flow Meter
-48A = Ariel JGB and JGV 4 and 6 cylinder Compressors
-48B = Ariel JGC and JGD 4 and 6 cylinder compressors with standard shaft rotation and a single chain drive / Ariel JGC and JGD 6 cylinder compressors with reverse shaft rotation and a dual chain drive
-48C = Ariel JGC and JGD 4 and 6 cylinder compressors with reverse shaft rotation and a single drive chain / Ariel JGC and JGD 6 cylinder compressors with standard shaft rotation and a dual chain drive
-991 = Dresser Rand HOS and VIP (4 & 6 Cylinder) Compressors
-C33/34 = Slotted Adapter Universal Mount for Caterpillar 3300/3400 Engines

ADDITIONAL OPTIONS:
Oil Inlet Pressure Options -
-HP-A = High pressure Oil Inlet, 10-35psi
-HP-B = High pressure Oil Inlet, 36-70psi
Fire Safe Valve Option -
-FS = Fire Safe Valve
Extra Options -
-V = Fluorocarbon Valve Seat
-K = Hose Kit
