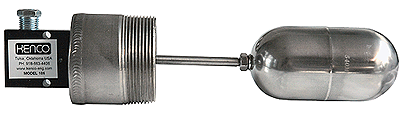

MODEL 106
Pneumatic dump valve controller for low pressure scrubbers
Low liquid level switch for cooling water expansion tanks
Automatic water make-up for cooling water expansion tanks
Low or high level switch for monitoring levels in tanks
MODEL 207
The Model 207 utilizes a Model 106 installed in a carbon steel tank. The tank features a sight glass and the wetted parts are carbon steel, brass, glass and Buna-N seals. The switch is designed to function as either a pneumatic high or low switch or as an automatic water make-up valve.
Specifications:
MODEL 106
PROCESS CONNECTIONS:
Valve Connection - 1/4" FNPT
Switch Mounting - 2" MNPT
MATERIALS OF CONSTRUCTION:
Float - 304 Stainless Steel
Float Arm - 303 Stainless Steel
2" Switch Mounting Connection - 303/304 Stainless Steel
Switch Body - Anodized Aluminum
Switch Shuttle - 304 Stainless Steel
Switch Yoke/Spring/Toggle - 303 Stainless Steel
Seal Material - Buna-N
DESIGN DATA:
Operating Pressure - 100 psi
Float Operating Specific Gravity - 1.00 or greater
* Consult Factory For Applications With A Lower Specific Gravity.
Water Flow Rate Through Micro Valve - 0.70 GPM @ 60 psi
* Valve Is Snap-Acting For Minimum Gas Or Air Requirement.
MODEL 106-SS
PROCESS CONNECTIONS:
Valve Connection - 1/4" FNPT
Switch Mounting - 2" MNPT
MATERIALS OF CONSTRUCTION:
Float
= 304 Stainless Steel
Float Arm - 303 Stainless Steel
2" Switch Mounting Connection - 303/304 Stainless Steel
Switch Body - 316 Stainless Steel
Switch Shuttle - 316 Stainless Steel
Switch Yoke/Spring/Toggle - 316 Stainless Steel
Seal Material - Viton
DESIGN DATA:
Operating pressure - 100 psi
Float Operating Specific Gravity - 1.00 or greater
* Consult Factory For Applications with A Lower Specific Gravity.
Water Flow Rate Through Micro Valve - 0.70 GPM @ 60 psi
* Valve Is Snap-Acting For Minimum Gas or Air Requirement.
MODEL 207
PROCESS CONNECTIONS:
Valve Connection - 1/4" FNPT
Tank Inlet/Outlet - 1/2" FNPT
Switch Mounting - 2" MNPT
MATERIALS OF CONSTRUCTION:
Tank - Carbon Steel
Sight Gauge Assembly
= Carbon Steel, Brass/Glass/Buna-N
Float - 304 Stainless Steel
Float Arm - 303 Stainless Steel
2" Switch Mounting Connection - 303/304 Stainless Steel
Switch Body - Anodized Aluminum
Switch Shuttle - 304 Stainless Steel
Switch Yoke/Spring/Toggle - 303 Stainless Steel
Seal Material - Buna-N
DESIGN DATA:
Operating pressure - 100 psi
Float Operating Specific Gravity - 1.00 or greater
* Consult Factory For Applications with A Lower Specific Gravity.
Water Flow Rate Through Micro Valve - 0.70 GPM @ 60 psi
* Valve Is Snap-Acting For Minimum Gas or Air Requirement.
