Low Flow Meter
Operating Principle:

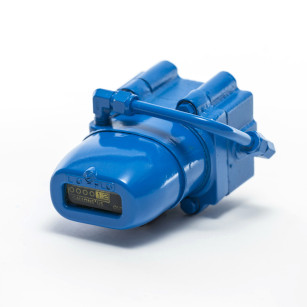

 The Kenco 1618 Low Flow Meter is part of an oil supply system for a stationary engine or compressor crankcase. The 1618 is installed on the inlet side of the crankcase, upstream of a Kenco Oil Level Controller. The 1618 Low Flow Meter will provide a constant, accurate measurement of oil consumption by the crankcase, the power cylinder lubricators, and the compressor cylinder lubricators. A single pole single throw reed switch is also available as an option; the switch will close momentarily every time the piston inside the meter strokes.
The Kenco 1618 is the low maintenance, cost-effective solution for visible and accurate readings of engine oil consumption.
Features:
Double action, single piston meter Measures flow rates up to 5 gallons per hour Provides an Indication of Engine Condition Registers up to 9,999 gallons Counter Immersed in Oil, Assuring Maximum Resistance to Wear From Vibration SPST reed switch available(Model 14308)
Specifications:
MODEL 1618
MATERIALS OF CONSTRUCTION:
Housing - Aluminum
Seal Material - Buna-N
Chamber Seal Material - Teflon
Register Mechanism - Zinc Based Lusteron K Coated Lithographed Numbers
PROCESS CONNECTION:
Oil Inlet - 1/2" FNPT
Oil Outlet - 1/4" FNPT
DESIGN DATA:
Single Cycle Displacement - 1/50th Gallon
Single Stroke Displacement - 1/100th Gallon
Maximum Working Pressure - 50 psi
Maximum Flow - 5 Gallons per Hour
Accuracy - Factory Tested +/- 0.75%
* For Gravity Flow, Recommended Static Head Pressure Is 12 Feet Above the Oil Controller.
** IMPORTANT: When a 1618 meter is installed upstream from a KENCO oil level controller, the inlet pressure on the oil level controller will be reduced by one half.
MODEL 14308
MATERIAL OF CONSTRUCTION:
Housing - Aluminum
Seal Material - Buna-N
Chamber Seal Material - Teflon
Register Mechanism - Zinc Based Lusteron K Coated Lithographed Numbers
PROCESS CONNECTIONS:
Oil Inlet - 1/2" FNPT
Oil Outlet - 1/4" FNPT
Conduit Connection - 1/2" MNPT
SWITCH DATA:
Circuitry - Single Pole Single Throw
Switch Closure Rate - 50 Closures per Gallon
Maximum voltage - 100 Volts DC
Maximum Current - 0.25 Amps DC
Maximum Power - 7.0 Watts
DESIGN DATA:
Single Cycle Displacement - 1/50th Gallon
Single Stroke Displacement - 1/100th Gallon
Maximum Working Pressure - 50 psi
Maximum Flow - 5 Gallons per Hour
Accuracy - Factory Tested +/- 0.75%
* For Gravity Flow, Recommended Static Head Pressure Is 12 Feet Above the Oil Controller.
** IMPORTANT: When a 14308 meter is installed upstream from a KENCO oil level controller, the inlet pressure on the oil level controller will be reduced by one half.
|
