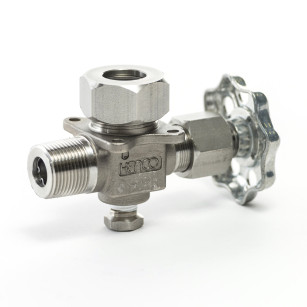

KTV Tubular Valves For Level Gauges
Application:
The KENCO Tubular Valve (KTV), when used with a KENCO "SAFEGUARD" level gauge or KENCO "EPG" level gauge, provides maximum operator safety and environmental protection from a potential gauge glass failure. The KTV is designed for service in low to medium pressure applications up to 500 psig.
Features:
-
The 1/8" thick o-ring provides for easy installation of the glass and requires less wrenching of the packing nut to seal
-
Positive O-ring seal gauge glass connection
-
1/2" OR 3/4" MNPT rigid vessel connections
-
Ball check shut off
-
Inline vent and drain connection for easy glass cleaning
-
Straight pattern design
-
Braided PTFE stem packing
-
Flanged vessel connections available
-
All valves are supplied with 316 S.S. valve stems, ball checks and glass packing washer
-
The bodies are precision investment castings with each body pressure tested to assure quality
Specifications:
PROCESS CONNECTIONS:
KTV50
= 1/2" MNPT Vessel Connection and 5/8" O.D. Gauge Glass Connection
KTV75
= 3/4" MNPT Vessel Connection and 3/4" O.D. Gauge Glass Connection
KTV50FL
= 1/2" 150# RF Flange and 3/4" O.D. Gauge Glass Connection
KTV75FL
= 3/4" 150# RF Flange and 3/4" O.D. Gauge Glass Connection
KTV10FL
= 1" 150# RF Flange and 3/4" O.D. Gauge Glass Connection
KTV15FL
= 1 1/2" 150# RF Flange and 3/4" O.D. Gauge Glass Connection
KTV20FL
= 2" 150# RF Flange and 3/4" O.D. Gauge Glass Connection
VALVE BODY MATERIAL:
CS
= Zinc Plated Carbon Steel
SS
= 316 Stainless Steel
GAUGE GLASS SEAL MATERIAL:
V
= Fluorocarbon
A
= Aflas
B
= Buna-N
E
= Ethylene Propylene
T
= PTFE Encapsulated Silicone
** IMPORTANT: Pressure and temperature ratings for the valves will be determined by the limitation of the tubular glass.
