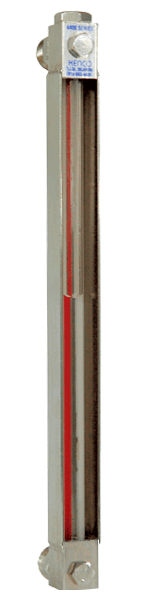

4400 Close-Mount Level Gauge
Application:
The KENCO close-mount level gauge is ideally suited for applications in which the level gauge must be mounted with a minimum of protrusion from the tank. Typical applications include offshore or corrosive atmospheres, packaged hydraulic equipment, steel mill pumps, surge tanks, radiator fluid levels.
The design of these gauges affords easy installation. Simply install the male thread adapter into the tank connection and then slide the gauge housing over these adapters and bolt gauge into place. The glass is protected from breakage by the gauge housing.
Features:
Nickel Plated Brass and Stainless Steel construction material options
Redline glass for easy observation of fluid level
Metal frame on three sides protects glass
Large ports provide quick level response
Easy installation-no pipe unions and/or threaded nipples required
1/4" or 1/2" connections mount directly into FNPT process connection
Specifications:
Process Connections:
44M25
= 1/4" MNPT
44M50
= 1/2" MNPT
HOUSING MATERIAL:
B
= Nickel Plated Brass
S
= Stainless Steel
SIGHT TUBE MATERIAL:
1/2" O.D. Redline Glass
SEALS:
V
= Fluorocarbon
A
= Aflas
B
= Buna-N
E
= Ethylene Propylene
*Other Seal Materials Available. Consult Factory For Options.

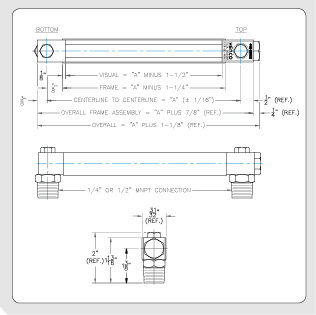

MAXIMUM LENGTH
- 60" Center to Center
MAXIMUM PRESSURE RATING
- 135 psig @ 150 °F
