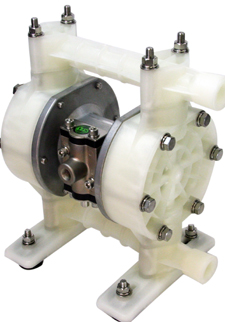

Iwaki Air TC-X150 Series 1/2" AODD Pump
|
The Iwaki Air TC-X150 AODD pump is specially designed for frequent start/stop, dead head and high pressure type applications.
| Maximum Flow Rate: 7.4 GPM (28 LPM) |
| Maximum Discharge Head: 230 FT (70 m) |
| Available in: Glass Fiber Reinforced Polypropylene (PPG), Polyoxymethylene (POM) |
| Shuttle Valve type: Spring-less Spool |
| |
|
 |
Specifications:
| Material Code: |
|
P"X" |
DT |
| Max Flow Rate: |
|
7.4 GPM (28 LPM) |
| Max Operating Pressure: |
|
100 PSI (0.7 MPa) |
| Max Air Consumption: |
|
10.6 scfm (300 L/min) |
| Supply Air Pressure Range: |
|
30 to100 PSI (0.2 to 0.7 MPa) |
| Liquid Discharge Volume per Cycle: |
|
1.7 oz (50 ML) |
| Connection Size (Suction x Discharge): |
|
NPT 1/2" |
| Weight: |
|
7.7 lbs (3.5 kg) |
|
Pump Body Material Code:
P-Glass Fiber Reinforced Polypropylene (PPG)
D- Polyoxymethylene (Acetal)
|
"X" Diaphragm material options:
T-PTFE (Teflon®)
H-TPEE (Hytrel™)
C-CR (Neoprene™)
N-NBR (Buna)
S-TPO (Santoprene®)
|
Teflon®, Hytrel®, Neporene™ are registered trademarks of DuPont
Santoprene® is a registered trademark of Exxon
