Iwaki Air AODD Pumps

Iwaki Air AODD pumps are engineered for maximum utility. They are portable and easy to install, operate, and maintain. Infinitely variable flow rates and variable discharge pressures can handle a large range of fluids, including corrosive chemicals and flammable liquids. The AODD pumps can run dry, self-prime and dead-head without damaging the pump. Other design elements that distinguish Iwaki Air AODD pumps include body stabilization features to ensure heat resistance, and sound suppression construction to reduce both mechanical noise and compressed air noise.

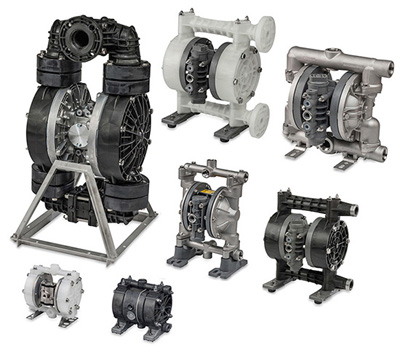

Iwaki Air AODD Pumps FamilyThese pumps are built for power. A higher power output means the pump can operate with less applied air pressure compared with many competitor’s pumps – often outperforming pumps that may have a higher listed flow rate.

  • Looped C-Spool Air Valve
    Revolutionary new spring design uses stronger, light-weight material for a smoother stroke with less wear and tear of all spool components (fully interchangeable with C-Spool model pumps). Iwaki Air AODD pumps

  • Lube-free Operation
    Clean, environmentally friendly design is engineered without the need for lubrication. Lube-free operation extends the life of all air motor parts

  • Independent and Modular Pilot Valve
    Industry-leading pilot valve system design is fully independent and virtually non-wearing. Static seals are dirt and moisture resistant. Pilot valve and springs are made from high tensile stainless steel that will not bend or rust. Faster cycles with shorter strokes will extend diaphragm life.

  • Large Diameter Ports
    Oversized ports allow air contamination to pass through the pump eliminating blockages and freezing.

  • Reduced Pump Stalling
    The unique new Looped C-Spool greatly reduces the pump stalling

  • Resists Freezing
    Compressed air expands gradually through our innovative staged air chamber exhaust system to reduce freezing. Large air port design allows contaminated air to pass through the pump and out the exhaust.

TC-X030, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X030 - 1/4" AODD Pump

2 GPM (8 LPM)

Maximum Flow Rate:
2.1 GPM (8.0 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: PVDF
Shuttle Valve type: Looped C-Spring Valve
Certifications: CE, ATEX

<< Learn More >>
TC-X050, AODD Pumps, Air Operated Double Diaphragm Pumps

Chlorine Pocket Photometer

TC-X050 - 1/4" AODD Pump

3 GPM (11.5 LPM)

Maximum Flow Rate:
3.0 GPM (11.5 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: SS, PVDFAluminum, Glass Fiber Reinforced Polypropylene, Pure Polypropylene

<< Learn More >>
TC-X100, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X100/101 - 3/8" AODD Pump

6.1 GPM (23 LPM)

Maximum Flow Rate:
6.1 GPM (23 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: SS, PVDF, Aluminum, Glass Fiber Reinforced Polypropylene, Pure Polypropylene

<< Learn More >>
TC-X102, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X102 - 3/8" AODD Pump

6.3 GPM (24 LPM)

Maximum Flow Rate:
6.3 GPM (24 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced Polypropylene
Shuttle Valve type:
 C-Spring Valve

<< Learn More >>
TC-X150, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X150 - 1/2" AODD Pump

7 GPM (28 LPM)

Maximum Flow Rate:
7.4 GPM (28 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced Polypropylene (PPG), Polyoxymethylene (POM)

<< Learn More >>
TC-X151, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X151 - 1/2" AODD Pump

14 GPM (54 LPM)

Maximum Flow Rate:
14.3 GPM (54 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced Polypropylene, Polyoxymethylene (POM), Aluminum, PVDF, SS

<< Learn More >>
TC-X152, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X152 - 1/2" AODD Pump

16 GPM (60 LPM)

Maximum Flow Rate:
15.8 GPM (60 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Stainless Steel, Aluminum, Pure Polypropylene & PVDF

<< Learn More >>
TC-X202, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X202 - 3/4" AODD Pump

32 GPM (120 LPM)

Maximum Flow Rate:
31.7 GPM (120 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced Polypropylene (PPG) & PVDF

<< Learn More >>
TC-X252, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X252 - 1" AODD Pump

44 GPM (165 LPM)

Maximum Flow Rate:
43.6 GPM (165 LPM)
Maximum Discharge Head: 230 FT (70 m)
Available in: Glass Fiber Reinforced Polypropylene & Kynar®

<< Learn More >>
TC-X253, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X253 - 1" AODD Pump

58 GPM (220 LPM)

Maximum Flow Rate:
58.1 GPM (220 LPM)
Maximum Discharge Head: 230 FT (70 m)
Maximum Solids Size: 6.5 mm
Available in: SS, Aluminum and Cast Iron

<< Learn More >>
TC-X500, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X500 - 2" AODD Pump

190 GPM (720 LPM)

Maximum Flow Rate:
190.2 GPM (720 LPM)
Maximum Discharge Head: 280 FT (85 m)
Available in: SS, PVDF, Aluminum, Polypropylene
Shuttle Valve type: Coil Spring Air Spool

<< Learn More >>
TC-XTT, AODD Pumps, Air Operated Double Diaphragm Pumps

TC-X TT AODD Pump

Coming Soon!

Non-Metallic AODD Pump. Capacity: Adjustable 0 to 95 GPM. Max/Min Air Pressure: LKT 70/20 PSI . Other Models 100/20 PSI. Dry Lift Capacity at MAX...

<< Learn More >>
