Smart Trak Multi-Point Level Switch Fitting From Flowline
Application
The adjustable multi-point fitting enables users to install and adjust up to four Flowline level switches to any depth along the entire length of track. The fitting is typically applied in atmospheric day tanks, process vessels and waste sumps. Select the appropriate track length based upon your applied tank height and add one sensor car kit for each sensor to be installed on the track.
Features
Adjustable level sensor cars make setup or changes fast and simple
Standard track lengths are easily cut to applied length in the field
Rugged PP construction for use with challenging corrosive liquids
Tech Tip

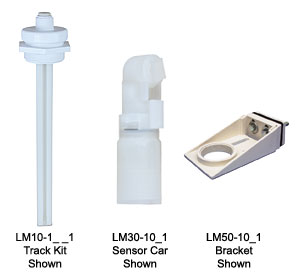

The track kits are offered in standard lengths with a 2" process mount and 3/4" nipple for enclosure or conduit mount. One to four sensor cables are sealed via the internal neoprene and santoprene compression gaskets.
At the heart of the fitting is the adjustable level sensor car. Each kit includes a 3/4" car with track mounting hardware. Order one car kit for each level sensor.
For simple installation on open tanks, order the side mount bracket. The PP bracket is typically bolted to the side wall of the tank.
