Switch-Tek Mini-Float Level Switches From Flowline

Switch-Tek, Mini-Float Level Switches, Flowline
Application

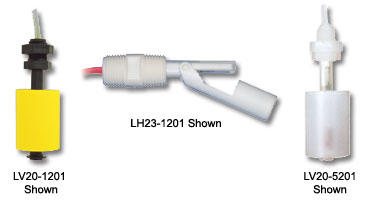

Offered in both vertical and horizontal float configurations, the general purpose mini-float level switches are a great choice for less critical applications with clean water and/or chemical solutions. Media examples include water and acetic acid. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm.
Features
Simple low-cost switch solution for simple level applications
Selectable normally open or closed output states
Switch-Tek, Mini-Float Level Switches, Flowline
Switch-Tek, Mini-Float Level Switches, Flowline
Specifications
Orientation:
LV20: ±20° vertical
LH23: ±20° horizontal
Repeatability:
± 2 mm in water
Contact type:
(1) SPST reed
Contact rating:
15 VA
Process temp:
F: -40° to 149°
C: -40° to 65°
Pressure:
10 psi (0.7 bar)
Cable length:
2' (60 cm)
Sensor rating:
NEMA 6 (IP68)
Process mount:
LV20: 1/8" NPT
LH23: 1/2" NPT
Sensor material:
PP / PVDF
Classification:
General purpose
Switch-Tek, Mini-Float Level Switches, Flowline

Click here to download specifications.
