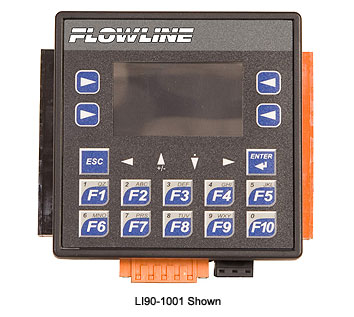

Flowline LI90 Commander (GP) 1/4 DIN Multi-Channel Relay Controller

LI90,Commander,GP,1/4 DIN,Multi,Channel,Relay,Controller,Flowline
Application
As a compact, powerful controller - the Commander series can be used in literally thousands of applications. From OEM machine control to machine monitoring in a plant environment, the Commander series can be instrumental in keeping you or your customer's automation activities running smoothly. The display is designed with an attractive look so it will fit in with most panel or console designs.
Features
Graphic tank display for better process and machine visualization
Takes less space and is more affordable than separate PLC and Operator Interfaces
First with removable MicroSD™ Memory
Data logging using built-in MicroSD™ mass data storage
Small enough to fit in the palm of your hand (only 3.75" square)
Removable Mass Data Storage
One of the first industrial products to include support for the latest standard in removable memory, MicroSD™. Capable of 1 GB of storage, you can use this additional memory to store process data, machine recipes and application files. (MicroSD™ card and card adaptor sold separately)


LI90,Commander,GP,1/4 DIN,Multi,Channel,Relay,Controller,Flowline           LI90,Commander,GP,1/4 DIN,Multi,Channel,Relay,Controller,Flowline
 LI90,Commander,GP,1/4 DIN,Multi,Channel,Relay,Controller,Flowline

Data sheet download.
Specifications
Dimensions:
3.7" x 3.7" x 2.5"
Weight:
12.5 oz (0.354 kg)
Cut-out:
3.622" x 3.622"
Max panel thick:
5 mm
Supply voltage:
10-30 VDC
Num. of channels:
4
Input ranges:
4-20 mA
Num. of outputs:
6 relays
Type:
Mechanical contact
Num. of commons:
6
Max. output current:
3A at 250 VAC resistance
Max. output voltage:
275 VAC, 30 VDC
Max. switched power:
1250 VA, 150 W
Oper. temp.:
F: 32° to 122°
C: 0° to 50°
Environmental:
F: 32° to 122°
C: 0° to 50°
Enclosure rating:
NEMA 4X
Rel. humidity:
5 to 95% non-condense
Intern. memory:
256 KB
Opt. memory card:
Up to 1 GB
Logic scan rate:
1.2 mS/K
Graphics / text:
Yes
Display technology:
Backlit LCD
Pixels count:
128 x 64
Terminal type:
Screw type, 5 mm rem.
Certifications:
CE, UL
