Application

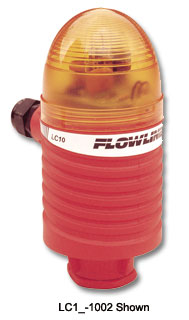

The general purpose controller is offered in two versions with 1 relay and 1 or 2 sensor inputs. The LC10 provides a high or low level switch with a single sensor input. The LC11 provides latched automatic fill or empty control with two sensor inputs, and is typically integrated with Smart Trak. The optional flash alarm brings immediate attention to process conditions. Package the controller with any of our level switches.
Level Switch, Compact, Relay, Controller, Flowline
Features
Fail-safe compact relay control of pumps and valves with 0-60 second time delay
Optional strobe brings immediate attention to tank alarm conditions
PP enclosure rated NEMA 4X with 300° swivel base for easy conduit alignment
Easy setup with LED indicators for sensor, power and relay status
Tech Tip
The AC powered relay controller has a 10A relay, adjustable time delay, LED indicators and NO or NC invert switch. The rugged NEMA 4X enclosure is made of UL approved fire retardant PP with a swivel base for easy conduit alignment.
Level Switch, Compact, Relay, Controller, Flowline
Level Switch, Compact, Relay, Controller, Flowline
Level Switch, Compact, Relay, Controller, Flowline
Specifications
Supply voltage:
120/240 VAC, 50-60 Hz.
Sensor inputs:
LC10: (1) level switch
LC11: (2) level swiitches
Strobe type:
10_1: N/a
10_2: Xenon tube
Contact type:
LC10: (1) SPDT relay
LC11: (1) SPDT relay (latching)
Contact rating:
250 VAC @ 10A
Contact delay:
0-60 seconds
LED indication:
Sensor, power & relay status
Electronics temp:
F: -40° to 158°
C: -40° to 70°
Enclosure rating:
NEMA 4X (IP65)
Enclosure material:
10_1: PP (UL94VO)
10_2: PP (UL94VO)
Enclosure mount:
3/4" NPT (3/4" Rp)
Classification:
General purpose
Level Switch, Compact, Relay, Controller, Flowline
