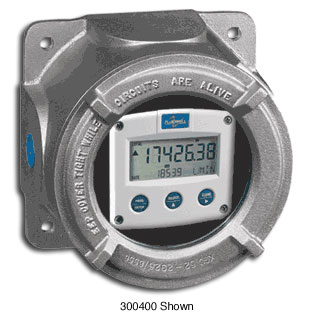

CSA approved explosion proof for use in hazardous applications, the loop powered field meter displays engineering units connected in series with one 4-20 mA transmitter. The meter is typically selected for use with an explosion proof transmitter within a hazardous area. The windowed field enclosure is wall mounted for convenient viewing.
Features
Rugged XP enclosure with viewing window and dual conduit ports
45° pie graph indicates percentage of measured span
Intuitive menu makes configuration fast and easy
Non-volatile memory with security password lockout
Linear and square root functions
Tech Tip
For explosion proof level measurement and indication, package your meter with the EchoSafe XP ultrasonic transmitter. It's level made simple.
Specifications
Display type:
LCD, 5 1/2 digit
Display units:
Engineering
Decimal point:
0, 1, 2 or 3
Display output:
0.001 to 99,999
Display height:
Main: 1" (26 mm)
Secondary: 0.3" (8 mm)
User interface:
Three push button
Sensor input:
(1) 4-20 mA transmitter
Loop power:
10-30 VDC
Memory:
Non-volatile
Voltage drop:
2.6 VDC @ 20 mA
Ambient temp.:
F: -40° to 176°
C: -40° to 80°
Enclosure rating:
NEMA 4, 7 & 9 (IP66)
Enclosure mat'l.:
Aluminum
Window mat'l.:
Glass
Conduit entrance:
Dual, 3/4" NPT
Compliance:
CE, UL
EN61326, EN61010-1
Approvals:
Explosion proof
CSA: Class I, Groups C, D;
Class II, Groups E, F, G;
Class III; T-code = T4
