FloaTek, Two-Wire, Float, Level Transmitter, Flowline

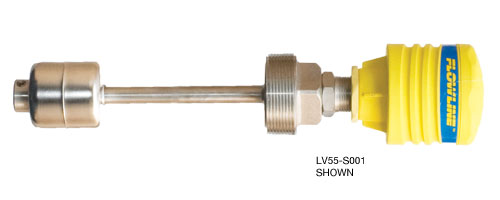

FloaTek GP Float Transmitter from Flowline

FloaTek, Two-Wire, Float, Level Transmitter, Flowline
Application
The general purpose two-wire, float transmitter provides contact level measurement up to 8' or 2.4m, and is ideally suited for relatively clean water, light weight oil or diluted corrosive liquids. The transmitter is typically selected for hight temperature and/or pressure process tank applications. Media examples include boiler water and cooking oil.
Features
Ideal level measurement solution for high temperature and pressure
Rugged 316 stainless steel float, guide and 2" NPT mounting plug
Compatible with Flowline remote indicator and relay controllers
Custom assembled to your guide length and span dimensions
PP junction box rated NEMA 4X with 1/2" conduit connector and removable terminal strip
Tech Tip
For level indication and control, package your float transmitter with the DataView single-channel meter. The bright two-line LED display, loop powered supply, optional relays and 4-20 mA repeater make it a fantastic general purpose meter. It's level indication and control made simple.
Specifications
Range:
6" to 96" (15.2cm to 2.4m)
Accuracy:
0.25% over span in water
Specific gravity:
0.55 minimum
Orientation:
± 30° from vertical
Supply voltage:
10 to 30 VDC
Loop resist.:
600 Ohms @ 24 VDC
Signal output:
4-20 mA, two-wire
Calibration:
None, fixed span
Process temp.:
F: -40° to 185°
C: -40° to 85°
Pressure:
200 psi (13.8 bar)
Enclosure rating:
NEMA 4X (IP65) / NEMA 7
Encl. material:
PP, UL94VO
Guide/float mat:
316 ss
Process mount:
2" NPT
Conduit entrance:
Single, 1/2" NPT
Classification:
General purpose
Compliance:
CE
