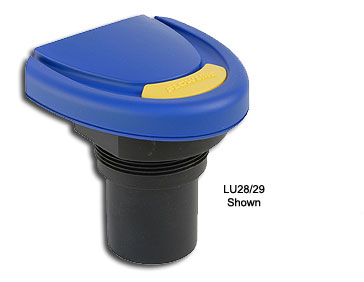

EchoSonic® II GP Ultrasonic Transmitter, Non-contact Measurement with WebCal

EchoSonic,II,GP,Ultrasonic,Transmitter,Non-contact,Measurement,WebCal,Flowline
Application
The general purpose two-wire ultrasonic transmitter provides non-contact level measurement up to 32.8' (10 m), and is well suited for challenging ultrapure, corrosive, slurry or waste liquids. The transmitter is broadly selected for atmospheric bulk storage, day tank, waste sump, process vessel, IBC tote, 55-gallon drum and waste sump applications. Media examples include acetic acid and resin.
Features
WebCal, an innovative PC user interface that provides fast and accurate configuration
Offered in 3 measurement ranges up to 32.8' (10m)
Optimized sensor replacement with unmatched beam width (3") for applications with restricted space
Industry leading miniature dead band maximizes the filling capacity of vessels
Polycarbonate enclosure rated NEMA 4X with PVDF transducer
Configuration
EchoSonic II is user configured via our WebCal software through the Fob USB interface tool. Configuration files can be easily created, saved, copied into one or more units, emailed or modified. Take control of your level process with WebCal's intuitive interface, pre-programmed menus, tank set point graphics and custom wiring diagrams for each configuration. Click here to learn more about WebCal. Its level made simple.
Specifications
Range:
LU27: 4" to 8.2'(10cm to 2.5m)
LU28: 8" to 24.6' (20cm to 7.5m)
LU29: 8" to 32.8' (20cm to 10m)
Accuracy:
±0.2% Range
Resolution:
LU27: 0.019" (0.5mm)
LU28/29: 0.078" (2mm)
Beam width:
LU27: 2" (5cm) dia.
LU28/293: 3" (7.6cm) dia.
Dead band:
LU27: 4" (10cm)
LU28/293: 8" (20cm)
Memory:
Non-volatile
Supply voltage:
24 VDC
Consumption:
0.5 W
Loop resist.:
500 Ohms @ 24 VDC
Signal output:
4-20 mA, two-wire
Signal invert:
4-20 mA or 20-4 mA
Configuration:
WebCal® PC Windows® USB 2.0
Fail-safety:
4 mA, 20 mA, 21 mA, 22 mA or hold last
Process temp:
F: -4° to 140°
C: -20° to 60°
Temp. comp.:
Automatic
Ambient temp:
F: -31° to 140°
C: -35° to 60°
Pressure:
MWP = 30 psi (2 bar)
Enclosure rating:
NEMA 6P
Encl. material:
Polycarbonate
Trans. material:
PVDF
Cable jacket mat.:
Polyurethane
Cable type:
4-cond. shielded
Cable length:
10' (3m)
Process mount:
LU27: 1" NPT (1" G)
LU28/29: 2" NPT (2" G)
Mount gasket:
Viton®
Classification:
General purpose
Compliance:
RoHS
Approvals:
CE, cFMus


Data sheet download.
