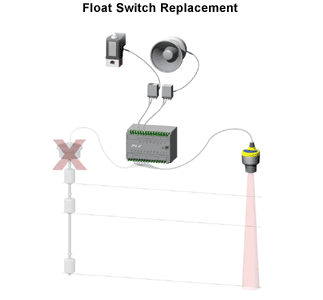

The general purpose, ultrasonic sensor provides non-contact level detection up to 49.2" (1.25m) with 4 SPST 60 VA 1A relays and a two-wire 4-20 mA level measurement output. Each relay can be configured on a single set point alarm or latched on two sets for automatic fill or empty in simplex or duplex control modes with fail-safe logic. The embedded controller can replace external control hardware. The sensor is well suited for a wide range of corrosive, sticky or dirty type media. EchoPod is broadly selected for small atmospheric day tank, skid or process vessel, lift station, IBC, drum and sump applications. To configure EchoPod, download our free WebCal software and purchase one USB interface tool.
Features
Multi-function sensor provides 4-20 mA measurement, relay switch and control functions
Compact sensor with 2" beam width and 2" dead band optimized for small tank applications
Four 1A relays programmable for switch or advanced pump or valve control and fail-safety functions including:
2 pumps with 2 alarms
1 pump with 3 alarms
2 pumps (lead-lag) with 2 alarms
2 pumps (duplexing) with 2 alarms
4 independent switch point alarms
Rugged PVDF transducer and polycarbonate enclosure rated 6P for corrosive media
Configuration
EchoPod is user configured via our WebCal software through the Fob USB interface tool. Configuration files can be easily created, saved, copied into one or more units, emailed or modified. Take control of your level process with WebCal's intuitive interface, pre-programmed menus, tank set point graphics and custom wiring diagrams for each configuration. Click here to learn more about WebCal. Its level made simple.
