 Features
Designed for drain water removal or permanent applications with small amounts of debris. Wide-angle or vertical mechanical switch for small 10-1/22 diameter sumps. UL, CSA and SSPMA listed. Oil-filled motor for maximum heat dissipation, continuous bearing lubrication. Recessed vortex impeller for free flow of liquids and solids. Thermal overload protection with automatic reset.
Specifications
|

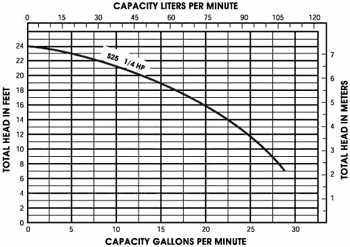

Capacities To
|
31 GPM
|
117 LPM
|
|
Shut-Off Head
|
24 ft
|
7 m
|
|
Pump Down Range (Float) (Switch Off-On) (Vertical)
|
7 in.
4-1/8 in.
|
178 mm
107 mm
|
|
Solids Handling
|
1/4 in.
|
6.35 mm
|
|
Liquids Handling
|
Drain water
|
|
Intermittent Liquid Temp.
|
140 F
|
60 C
|
|
Motor
|
1/3 hp shaded pole
3000 rpm
|
|
Electrical
|
115 volts, 8 amps, 1 ph, 60 hz
|
|
Acceptable pH Range
|
6-9
|
|
Mechanical Seal
|
type 11A, carbon/ceramic
|
|
Power Cord
|
10 ft, 16/3, SJTW/SJTW-A
20 ft, 16/3, SJTW/SJTW-A
|
|
Discharge, NPT
|
1-1/2 in. |
38.1 mm |
|
Min. Sump Dia. Wide Angle
|
18 in. |
457 mm |
|
Min. Sump Dia. Vertical
|
10-1/2 in. |
267 mm |
|
