 Features
High efficiency, two vane, enclosed impeller provides ideal performance for efficient dosing. Impeller passes full 3/42 solids. Enclosed impeller design eliminates possibility of jamming or corrosion between impeller and volute. Oil-filled motor for maximum heat dissipation and constant bearing lubrication. UL, CSA, and SSPMA listed. High torque, permanent split capacitor (PSC), single phase motors; no starting switches or relays to wear out. Optional seal leak probe warns of seal leak condition. (Dual seal motors only) Helps prevent costly motor damage. Motors have a winding current and temperature sensitive overload. (Single phase only) Volute seal ring is replaceable. Restores pump to original performance if wear ring should occur.

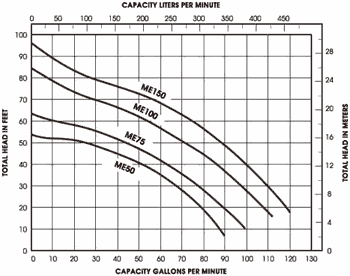

| Capacities To |
120 GPM |
454 LPM |
| Shut-Off Head |
95 ft |
28.9 m |
| Max. Spherical Solids |
3/4 in. |
19 mm |
| Liquids Handling |
domestic effluent and drain water |
| Intermittent Liquid Temp |
up to 140 F |
up to 60 C |
| Motor Electrical Data |
1/2 hp, 115 volts, 1 ph
1/2 to 1-1/2 hp, 230 volts, 1 ph 208/230/460/575 volts, 3 ph oil-filled, permanent split
capacitor type, 1 ph, 3450 rpm, 60 Hz |
| Motor Insultation |
Class B (130 C) |
| Third Party Approvals |
UL and CSA |
| Acceptable pH Range |
6-9 |
| Specific Gravity |
.9-1.1 |
| Viscosity |
28-35 SSU |
| Discharge, NPT |
2 in. |
50.8 mm |
| Specific Gravity |
24 in. |
61.0 mm |
| Specific Gravity |
36 in. |
91.4 mm |
|
