SSH Series Centrifugal Pumps From G&L Goulds Pumps
|
CLOSE-COUPLED SSH PUMPS
|
BASE-MOUNTED POWER FRAME UNITS |
Features
Superior Materials of Construction: AISI Type 316L stainless steel pump parts for reduced corrosion and improved strength and ductility. Frame Mounted Design: Flexibility of installation and driver arrangements. Back Pull-Out Design: Simplifies maintenance when used with spacer type coupling. Cast Iron Power Frame: Rigidly supported, grease lubricated ball bearing assembly. Mechanical Seal: Standard John Crane Type 21 mechanical seal.
Drive Motors: Standard NEMA design T-frame or JM motors in single or three phase. Suction and Discharge Flanges: Mate with ANSI class 150 flanges. Close-Coupled Design: Compact design saves space and simplifies maintenance.
Applications
Water circulation Booster systems Liquid transfer HVAC pump replacements General service pumping Filtration Marine Commercial Pool Food and Beverage

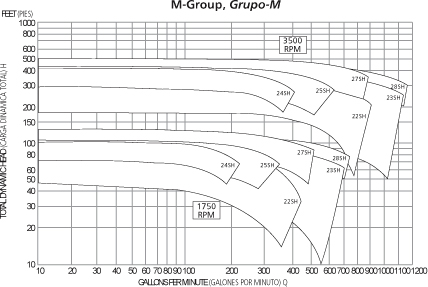

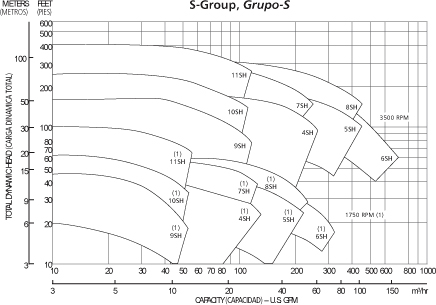

Performance
|
