Double Head Fixed Output Metering Pump - Classic Series From Stenner

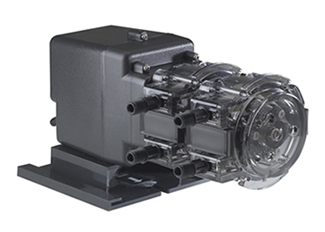

 The Double Head Fixed Output Metering Pump, is another variation to select from in the Classic Series, electro-mechanical pump line.
If requiring more output than the Classic single head pump offers, especially with 25 psi installations for larger commercial swimming pools, then the double head pump may be your answer. Similar to the other models in the Classic series, the pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control, oxidation and sanitization. Also utilized in water and wastewater treatment plants, the pump can inject two compatible liquids at the same ratio. The Classic Series double head fixed pump is built the same way as the single head fixed with the addition of another pump head that doubles the output. The pump runs at 100% fixed rate and can be installed to an ORP type controller to manage the output.
Unique Stenner Features
- Interchangeable pump heads and tubes to convert one model to another without having to purchase a new pump.
- Easy and fast tube replacement without tools with the QuickPro® pump head.
- The pump is built with three detachable components; the motor and two pump head that can be separated without tools.
How the Double Head Fixed Chemical Injection Pump Works
The fixed rate pump does not have an output adjustment. The output is determined by three factors; the rpm of the motor gears and the pump tubes in both heads. The motor’s output shaft rotates at a fixed rpm which drives the roller assembly within the pump head.
Sub-series
The 100 and 170 models are two sub-series within the Classic Series Double Head Pump (Adjustable and Fixed) and below is a summary of the primary differences in the Fixed.
| 100 Series Adjustable |
175 Series Adjustable |
26 rpm 3, 10, or 22 gpd up to 100 psi
(11.4, 37.9, 83.3 lpd at 6.9 bar) 3, 10, 22, 35 or 50 gpd up to 25 psi
(11.4, 37.9, 83.3, 132.5, 189.3 lpd at 1.7 bar)
|
44 rpm 5, 17 or 40 gpd up to 100 psi
(18.9, 64.4,151.4 lpd up to 6.9 bar) 5, 17, 40, 60 or 85 gpd up to 25psi
(18.9, 64.4, 151.4, 227.1 & 321.8 lpd up to 1.7 bar)
|
Product Manual
Classic Double Head Fixed Output Spec Sheet
Catalog
Chemical Resistance Guide
| Specifications |
|
| Maximum Operating Temperature |
125°F (52°C) |
| Maximum Suction Lift |
25 ft (7.6 m) vertical lift, based on water |
| Motor Type |
1/30 HP, shaded pole, class B |
| Duty Cycle |
Continuous |
| Motor Voltage (Amp Draw) |
120V 60Hz 1PH (1.7)
220V 60Hz 1PH (0.9)
230V 50Hz 1PH (0.9) INTERNATIONAL
250V 50Hz 1PH (0.9) INTERNATIONAL |
| Power Cord Type |
SJTOW |
| Power Cord Plug End |
120V 60Hz NEMA 5/15
220V 60Hz NEMA 6/15
230V 50Hz CEE 7/VII
250V 50Hz CEE 7/VII |
| Materials of Construction |
|
| All Housings |
Polycarbonate |
| Pump Tube & Check Valve Duckbill |
Santoprene®*, optional Versilon™** #1, #2 & #5 tubes,
FDA approved |
| CV Duckbill with Versilon™** Tube |
Pellathane® |
| Pump Head Rollers |
HDPE |
| Roller Bushings |
Oil impregnated sintered bronze |
Suction/Discharge Tubing,
Ferrules 1/4" & 6 mm |
Polyethylene, FDA approved |
| Tube Fittings, Check Valve Fittings |
Gray fittings: Type 1 Rigid PVC, NSF listed
Black fittings: PP, NSF listed |
| Connecting Nuts |
PP or Type 1 Rigid PVC |
| 3/8" Adapter |
Type 1 Rigid PVC, NSF listed |
| Suction Line Strainer |
PP or Type 1 Rigid PVC body with Type 1 Rigid PVC cap,
NSF listed; ceramic weight |
| All Fasteners |
Stainless steel |
| Pump Head Latches |
Polypropylene |
Listings vary by model.
* Santoprene® is a registered trademark of Exxon Mobil Corporation.
** Versilon™ is a registered trademark of Saint-Gobain Performance Plastics.
† Pellathane® is a registered trademark of The Dow Company.

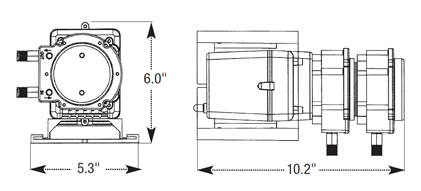

Pump Dimensions
Shipping Weight: 9 lbs (4 kg)
Box Dimensions: 18 x 8 x 10 in. (45 x 20 x 25 cm)
|
